ASD2511-R-C
ActiveTinyCircuits
COMPASS TINY SHIELD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ASD2511-R-C | ASD2511 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Function | Compass | Magnetometer, Gyroscope, Accelerometer, Pressure, Humidity, Temperature, Light, Compass |
| Platform | TinyDuino | TinyDuino |
| Type | Sensor | Sensor |
| Utilized IC / Part | - | LSM9DS1, BMP280, Si7020, TSL2572, Si7020-A10, BMA250 |
ASD2511 Series
9-AXISTINYSHIELD
| Part | Contents | Platform | Type | Utilized IC / Part | Function |
|---|---|---|---|---|---|
TinyCircuits ASD2511-R-N | Board(s) | TinyDuino | Sensor | LSM9DS1 | Accelerometer, Gyroscope, Magnetometer |
TinyCircuits ASD2511-R-P | Board(s) | TinyDuino | Sensor | BMP280 | Pressure |
TinyCircuits ASD2511-R-T | Board(s) | TinyDuino | Sensor | Si7020 | Humidity, Temperature |
TinyCircuits ASD2511-R-N-T-P-L | Board(s) | TinyDuino | Sensor | BMP280, LSM9DS1, Si7020-A10, TSL2572 | Accelerometer, Gyroscope, Humidity, Light, Pressure, Temperature |
TinyCircuits ASD2511-R-C | Board(s) | TinyDuino | Sensor | Compass | |
TinyCircuits ASD2511-R-A | Board(s) | TinyDuino | Sensor | BMA250 | Accelerometer |
TinyCircuits ASD2511-R-L | Board(s) | TinyDuino | Sensor | Light |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.95 | |
Description
General part information
ASD2511 Series

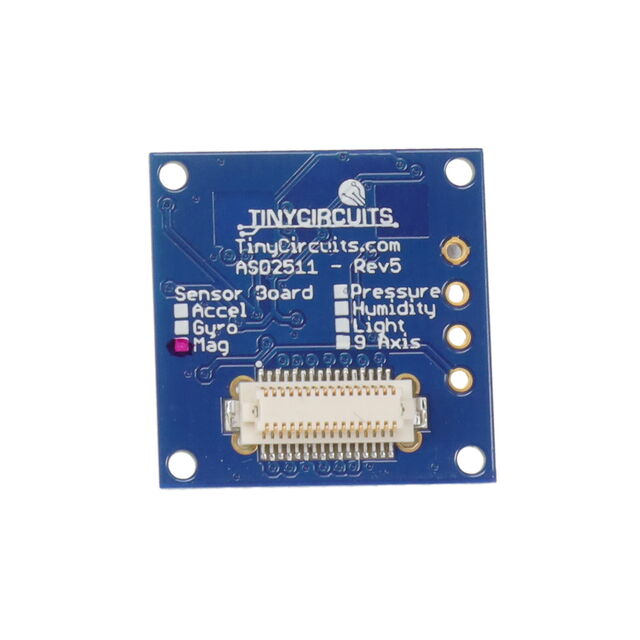

Compass Sensor TinyDuino Platform Evaluation Expansion Board
