6772312323F

Active

DIALIGHT

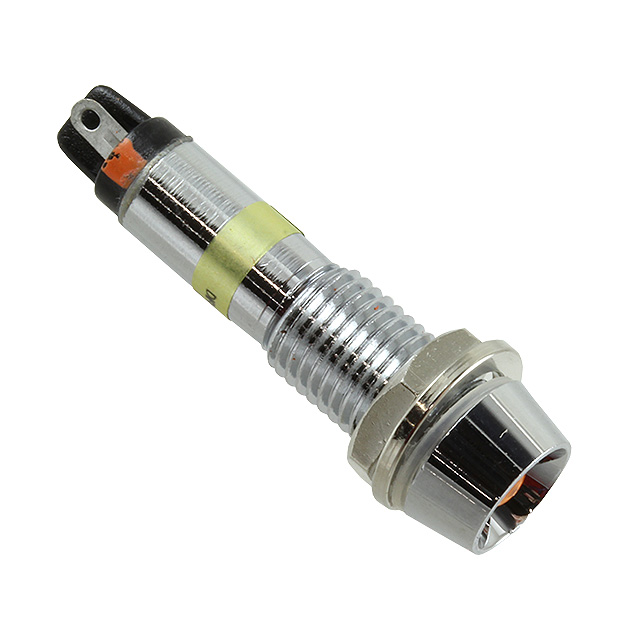

7MM HO/O PMI-6VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HO/O PMI-6VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6772312323F	6772312 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Orange	Orange
Millicandela Rating	600 mcd	600 - 3500 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	25 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	605 nm

LED PANEL INDCATOR ORANGE 24V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak	Millicandela Rating	Lamp Color	Panel Cutout Shape	Viewing Angle	Type	Ingress Protection	Current	Termination Style	Ratings	Voltage	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6772312343F	7.2 mm	0.28 in	605 nm	3500 mcd	Orange	Round	25 °	LED	IP66, NEMA 4X	30 mA	Solder Lug	DC	24 V
DIALIGHT 6772312333F	7.2 mm	0.28 in	605 nm	3500 mcd	Orange	Round	25 °	LED	IP66, NEMA 4X	30 mA	Solder Lug	DC	12 V
DIALIGHT 6772312323F				600 mcd	Orange	Round		LED	IP66, NEMA 4X	30 mA	Solder Lug	DC	6 V	7.11 mm	0.28 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Orange 6V 30mA Solder Lug

Technical documentation and resources

No documents available
