CA #EV02BT-003-3M

Active

Adam Tech

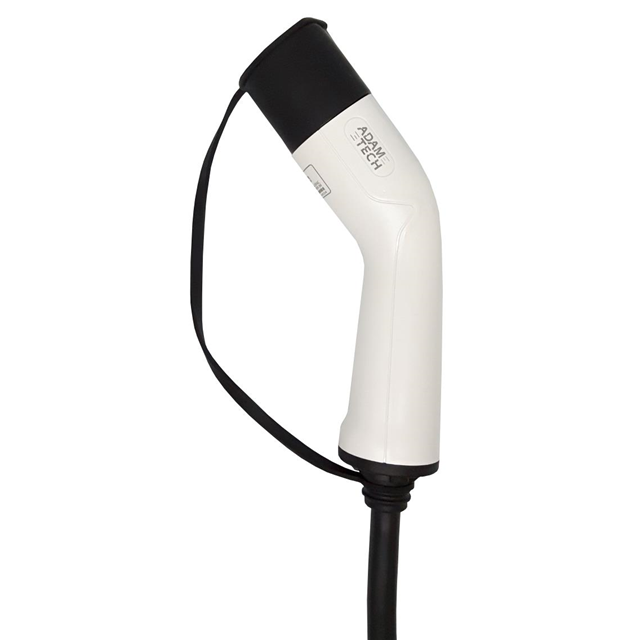

TYPE 2 MALE PLUG 3M 32A 1 PHASE

Search across all available documentation for this part.

Active

Adam Tech

TYPE 2 MALE PLUG 3M 32A 1 PHASE

Technical Specifications

Parameters and characteristics for this part

Specification	CA #EV02BT-003-3M

1st Connector	IEC 62196-2 (Type 2)
2nd Connector	3 Ring Terminals, 1 Ferrule
Color	Black
Current Rating (Amps)	32 A
Features	Electric Vehicles Charging (EV Charger), Charging, Electric Vehicles
Length [x]	9.84 ft
Length [x]	3 m
Number of Conductors	3, 2
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Shielding	Unshielded
Style	Male Plug to Leads with Terminals
Voltage Rating	250 VAC

Part	Style	Voltage Rating	Features	Color	Current Rating (Amps)	Length [x]	Length [x]	Shielding	Number of Conductors	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector
Adam Tech CA #EV02BT-003-3M	Male Plug to Leads with Terminals	250 VAC	Charging Electric Vehicles Electric Vehicles Charging (EV Charger)	Black	32 A	9.84 ft	3 m	Unshielded	2 3	1 Ferrule 3 Ring Terminals	50 °C	-30 ░C	IEC 62196-2 (Type 2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9.84' (3.00m) Power Cord Adapter Black IEC 62196-2 (Type 2) To 3 Ring Terminals, 1 Ferrule
