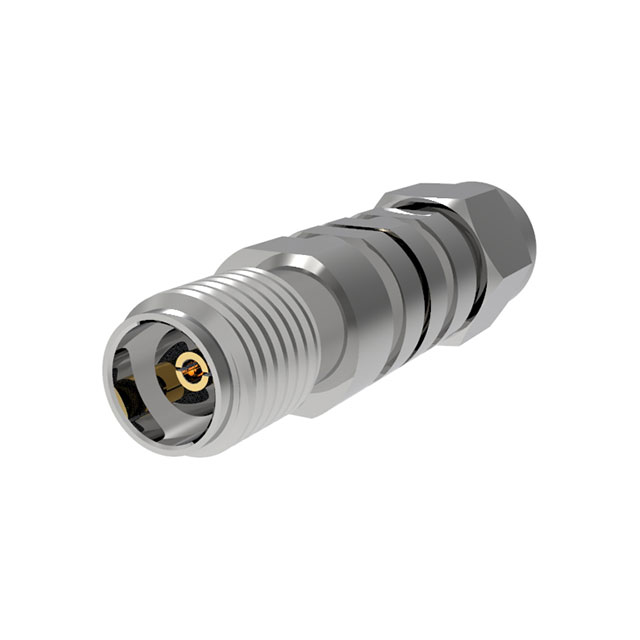

TMA-9FS-5MS-00

Active

CarlisleIT

MW ADAPTER 2.92(F) TO 3.5(M)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 2.92(F) TO 3.5(M)

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMA-9FS-5MS-00	TMA-9FS Series

Adapter Series [Max]	3.5 mm	2.92 - 3.5 mm
Adapter Series [Min]	2.92 mm	2.92 mm
Adapter Type	Plug to Jack	Jack to Jack, Plug to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Gender	-	Female to Female
Conversion Type	Between Series	Same Series, Between Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	-	2.92 mm
Convert To (Adapter End)	-	OS-2.9 Jack, Female Socket, 3.5mm Jack, Female Socket
Frequency - Max [Max]	26.5 GHz	26.5 - 40 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	Straight	Straight

MW ADAPTER 2.92(F) TO 2.92(F)

Part	Adapter Type	Body Material	Convert To (Adapter End)	Convert To (Adapter End)	Style	Impedance	Conversion Type	Mounting Type	Center Gender	Adapter Series [Max]	Adapter Series [Min]	Frequency - Max [Max]	Center Contact Material	Convert From (Adapter End)	Convert From (Adapter End)
CarlisleIT TMA-9FS-9FS-00	Jack to Jack	Stainless Steel	2.92 mm	OS-2.9 Jack, Female Socket	Straight	50 Ohms	Same Series	Free Hanging (In-Line)	Female to Female	2.92 mm	2.92 mm	40 GHz	Beryllium Copper	2.92 mm	Jack, Female Socket, OS-2.9
CarlisleIT TMA-9FS-5MS-00	Plug to Jack	Stainless Steel			Straight	50 Ohms	Between Series	Free Hanging (In-Line)		3.5 mm	2.92 mm	26.5 GHz	Beryllium Copper	2.92 mm	Jack, Female Socket, OS-2.9
CarlisleIT TMA-9FS-5FS-00	Jack to Jack	Stainless Steel		3.5mm Jack, Female Socket	Straight	50 Ohms	Between Series	Free Hanging (In-Line)	Female to Female	3.5 mm	2.92 mm	26.5 GHz	Beryllium Copper	2.92 mm	Jack, Female Socket, OS-2.9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 3.5mm Plug, Male Pin 50 Ohms
