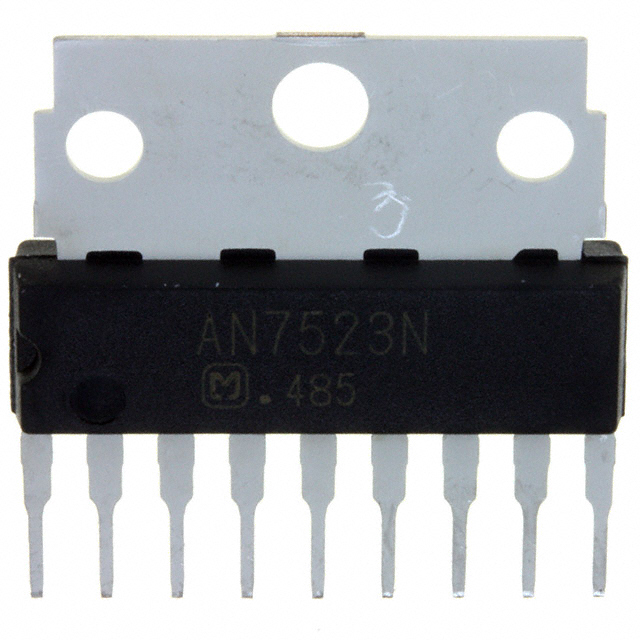

AN7523N

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB MONO 4W 9HSIP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB MONO 4W 9HSIP

Technical Specifications

Parameters and characteristics for this part

Specification	AN7523N

Features	Thermal Protection, Volume Control, Standby
Max Output Power x Channels @ Load	4 W, 1, 8 Ohm
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	1-Channel (Mono)
Package / Case	9-SIP
Supplier Device Package	9-HSIP
Type	Class AB
Voltage - Supply [Max]	13.5 V
Voltage - Supply [Min]	3.5 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Supplier Device Package	Type	Output Type	Max Output Power x Channels @ Load	Package / Case	Features
Panasonic Industrial Automation Sales AN7523N	70 °C	-25 °C	13.5 V	3.5 V	Through Hole	9-HSIP	Class AB	1-Channel (Mono)	1 4 W 8 Ohm	9-SIP	Standby Thermal Protection Volume Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class AB 9-HSIP
