FN282B-2-06

Active

TE Connectivity Raychem Cable Protection

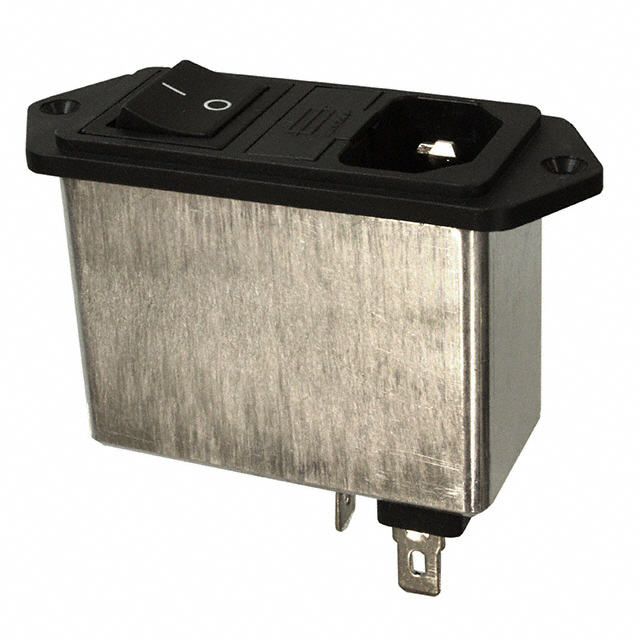

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN282B-2-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN282B-2-06

Accomodates a Fuse	True
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	2 A
Features	Front or Rear Side Mount, Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	60 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Schaffner FN280 Series

Part	Termination	Termination	Termination	Approval Agency	Ingress Protection	Mounting Type	Features	Connector Type	Switch Features	Fuse Holder, Drawer	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Filter Type	Material Flammability Rating	Current Rating - Filter	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
TE Connectivity Raychem Cable Protection FN286E-4-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Panel Mount Snap-In	Earth Line Choke	Receptacle Male Blades - Module	Switch On-Off	Fuse Holder Twin Fused	0.79 mm	0.118 in	3 mm	0.031 "	Filtered (EMI RFI) - Commercial	UL94 V-2	4 A	IEC 320-C14
TE Connectivity Raychem Cable Protection FN285-4-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Panel Mount Snap-In		Receptacle Male Blades - Module	Switch On-Off	Fuse Holder	0.79 mm	0.118 in	3 mm	0.031 "	Filtered (EMI RFI) - Commercial	UL94 V-2	4 A	IEC 320-C14
TE Connectivity Raychem Cable Protection FN285-2-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Panel Mount Snap-In		Receptacle Male Blades - Module	Switch On-Off	Fuse Holder	0.79 mm	0.118 in	3 mm	0.031 "	Filtered (EMI RFI) - Commercial	UL94 V-2	2 A	IEC 320-C14
TE Connectivity Raychem Cable Protection FN282-1-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Flange Panel Mount	Front or Rear Side Mount	Receptacle Male Blades - Module	Switch On-Off	Fuse Holder Twin Fused					Filtered (EMI RFI) - Commercial	UL94 V-2	1 A	IEC 320-C14	60 mm	29 mm
TE Connectivity Raychem Cable Protection FN282B-6-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Flange Panel Mount	Bleed Resistor Front or Rear Side Mount	Receptacle Male Blades - Module	Switch On-Off	Fuse Holder Twin Fused					Filtered (EMI RFI) - Commercial Medical	UL94 V-2	6 A	IEC 320-C14	60 mm	29 mm
TE Connectivity Raychem Cable Protection FN282B-4-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Flange Panel Mount	Bleed Resistor Front or Rear Side Mount	Receptacle Male Blades - Module	Switch On-Off	Fuse Holder Twin Fused					Filtered (EMI RFI) - Commercial Medical	UL94 V-2	4 A	IEC 320-C14	60 mm	29 mm
TE Connectivity Raychem Cable Protection FN285-10-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Panel Mount Snap-In		Receptacle Male Blades - Module	Switch On-Off	Fuse Holder	0.79 mm	0.118 in	3 mm	0.031 "	Filtered (EMI RFI) - Commercial	UL94 V-2	10 A	IEC 320-C14
TE Connectivity Raychem Cable Protection FN282B-2-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Flange Panel Mount	Bleed Resistor Front or Rear Side Mount	Receptacle Male Blades - Module	Switch On-Off	Fuse Holder Twin Fused					Filtered (EMI RFI) - Commercial Medical	UL94 V-2	2 A	IEC 320-C14	60 mm	29 mm
TE Connectivity Raychem Cable Protection FN282-10-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Flange Panel Mount	Front or Rear Side Mount	Receptacle Male Blades - Module	Switch On-Off	Fuse Holder Twin Fused					Filtered (EMI RFI) - Commercial	UL94 V-2	10 A	IEC 320-C14	60 mm	29 mm
TE Connectivity Raychem Cable Protection FN282-2-06	0.25 in	6.3 mm	Quick Connect	CQC CSA ENEC UL	IP40	Flange Panel Mount	Front or Rear Side Mount	Receptacle Male Blades - Module	Switch On-Off	Fuse Holder Twin Fused					Filtered (EMI RFI) - Commercial	UL94 V-2	2 A	IEC 320-C14	60 mm	29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 33.63
		10	$ 29.45
		25	$ 28.18
		40	$ 27.27
		80	$ 26.36
		240	$ 24.91

Description

General part information

Schaffner FN280 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
