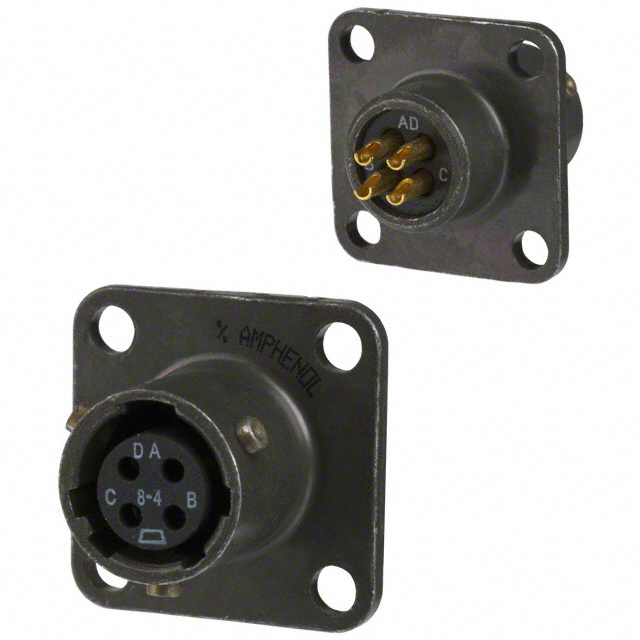

MS3112E-8-4S

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E-8-4S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	8-4
Shielding	Unshielded

Part	Insert Material	Shell Finish	Connector Type	Primary Material	Qualification	Color	Grade	Shell Size - Insert	Shell Material	Contact Finish - Mating	Number of Positions	Fastening Type	Applications	Ingress Protection	Mounting Feature	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
Amphenol Aerospace Operations MS3112E8-3PW
Amphenol Aerospace Operations MS3112E-8-4S	Neoprene	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Metal	MIL-DTL-26482 Series I	Olive Drab	Military	8-4	Aluminum	Gold	4	Bayonet Lock	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Flange	N	Unshielded	-55 °C	125 °C	Copper Alloy
Amphenol Aerospace Operations MS3112E8-3P	Neoprene	Olive Drab Chromate over Cadmium	Male Pins Receptacle	Metal	MIL-DTL-26482 Series I	Olive Drab	Military	8-3	Aluminum	Gold		Bayonet Lock	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Flange	N	Unshielded	-55 °C	125 °C	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
