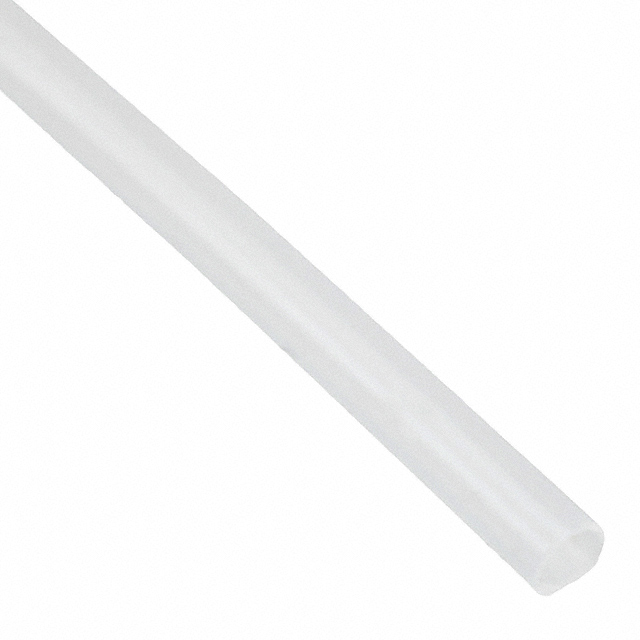

RPPM-4/1-X-SP

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RPPM Series Spec

RPPM-4/1-X-SP

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK

Deep-Dive with AI

DocumentsDatasheet RPPM Series Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPPM-4/1-X-SP

Color	Clear
Features	Fluid Resistant, Abrasion and Cut Resistant, Adhesive Lined
Inner Diameter - Recovered [diameter]	0.039 in
Inner Diameter - Recovered [diameter]	0.99 mm
Inner Diameter - Supplied [diameter]	3.99 mm, 4.01 mm
Inner Diameter - Supplied [diameter]	0.157 in, 0.158 in
Length	984.3 ft
Length	300 m
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.81 mm
Recovered Wall Thickness	0.032 "
Shelf Life	36 Months
Shrink Temperature	60 °C, 80 °C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

RPPM Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Features	Shelf Life	Shrink Temperature	Length [x]	Length [x]	Length [x]	Type	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Length	Length
TE Connectivity Raychem Cable Protection RPPM-NR510-X-40MM	85 °C	-40 °C	4 to 1	Clear	35 °C	0 °C	Abrasion Resistant Adhesive Lined Moisture-Proof	36 Months	60 °C	1.57 "	0.131 '	40 mm	Tubing Semi Rigid	0.063 "	1.6 mm	Polyolefin (PO) Irradiated	0.374 in	9.5 mm
TE Connectivity Raychem Cable Protection RPPM-12/3-X-STK	85 °C	-40 °C	4 to 1	Clear	35 °C	0 °C	Abrasion Resistant Adhesive Lined Moisture-Proof	36 Months	60 °C		4 ft	1.22 m	Tubing Semi Rigid			Polyolefin (PO) Irradiated	0.472 in	11.99 mm	3 mm	0.118 in	0.047 "	1.19 mm
TE Connectivity Raychem Cable Protection RPPM-16/4-X-STK
TE Connectivity Raychem Cable Protection RPPM-NR510-X-80MM	85 °C	-40 °C	6 to 1	Clear	35 °C	0 °C	Abrasion Resistant Adhesive Lined Moisture-Proof	36 Months	60 °C	3.15 in	0.262 ft	80 mm	Tubing Semi Rigid	0.063 "	1.6 mm	Polyolefin (PO) Irradiated	0.374 in	9.5 mm
TE Connectivity Raychem Cable Protection RPPM-NR501-X-SP	85 °C	-40 °C	4 to 1	Amber	35 °C	0 °C	Abrasion Resistant Adhesive Lined Moisture-Proof	36 Months	60 °C				Tubing Semi Rigid			Polyolefin (PO) Irradiated	0.413 in	10.49 mm			0.071 "	1.8 mm	0.07 in	1.78 mm
TE Connectivity Raychem Cable Protection RPPM-8/2-X-SP	85 °C	-40 °C	4 to 1	Clear	35 °C	0 °C	Abrasion Resistant Adhesive Lined Moisture-Proof	36 Months	60 °C				Tubing Semi Rigid			Polyolefin (PO) Irradiated		0.315 in	2.01 mm	0.079 in	0.035 in	0.89 mm			8 mm
TE Connectivity Raychem Cable Protection RPPM-4/1-X-SP	85 °C	-40 °C	4 to 1	Clear	35 °C	0 °C	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant	36 Months	60 °C 80 °C		3.28 ft	1 m	Tubing Semi Rigid			Polyolefin (PO) Irradiated	0.157 in 0.158 in	3.99 mm 4.01 mm			0.032 "	0.81 mm	0.039 in	0.99 mm		984.3 ft	300 m
TE Connectivity Raychem Cable Protection RPPM-NR510-X-STK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1800	$ 6.20

Description

General part information

RPPM Series

Heat Shrink Tubing, Semi Rigid 0.157" (3.99mm) 4 to 1 Clear 3.28' (1.00m)

Documents

Technical documentation and resources

Datasheet

RPPM Series Spec

Datasheet
