Z8F2480HJ020EG

Zilog

IC MCU 8BIT 24KB FLASH 28SSOP

Deep-Dive with AI

DocumentsDatasheet F1680 Series Brief

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z8F2480HJ020EG

Connectivity	LINbus, I2C, IrDA, SPI, UART/USART
Core Processor	eZ8
Core Size	8-Bit
Data Converters [custom]	8
Data Converters [custom]	10
Mounting Type	Surface Mount
Number of I/O	23
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

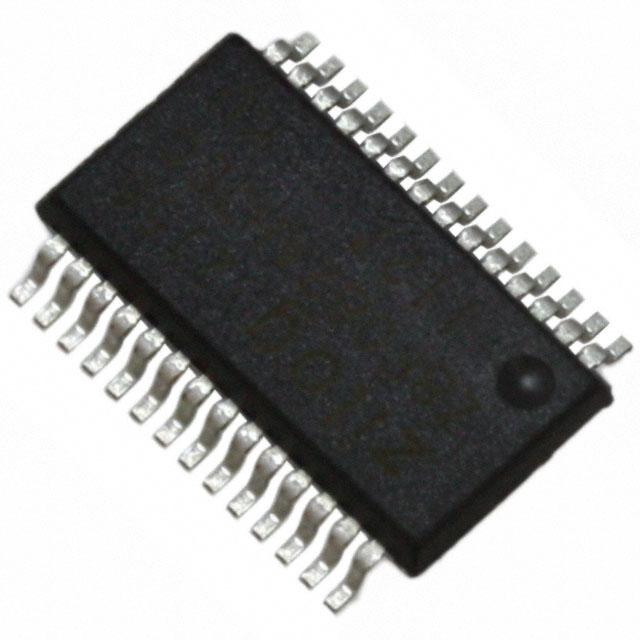

Package / Case	28-SSOP
Package / Case [custom]	0.209 in
Package / Case [custom]	5.3 mm
Peripherals	Temp Sensor, PWM, POR, LED, LVD, WDT, Brown-out Detect/Reset
Program Memory Size	24 KB
Program Memory Type	FLASH
Speed	20 MHz
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Z8F2480 Series

Part	Program Memory Size	Peripherals	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Size	Core Processor	Data Converters [custom]	Data Converters [custom]	Speed	Mounting Type	Package / Case [x]	Package / Case [x]	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Program Memory Type	RAM Size	Supplier Device Package	Data Converters	Package / Case	Data Converters	Package / Case [custom]	Package / Case [custom]
Zilog Z8F2480PM020SG	24 KB	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	33 I/O	1.8 V	3.6 V	8-Bit	eZ8	8	10	20 MHz	Through Hole	0.62 in	15.75 mm	Internal	70 °C	0 °C	I2C IrDA LINbus SPI UART/USART	FLASH
Zilog Z8F2480QN020SK	24 KB	Brown-out Detect/Reset LVD POR PWM Temp Sensor WDT	37	1.8 V	3.6 V	8-Bit	eZ8			20 MHz	Surface Mount			Internal	70 °C	0 °C	I2C IrDA LINbus SPI UART/USART	FLASH	1 K	44-QFN 7x7	A/D 8x10b SAR	44-VFQFN Exposed Pad
Zilog Z8F2480HH020EG	24 KB	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	17	1.8 V	3.6 V	8-Bit	eZ8			20 MHz	Surface Mount			Internal	105 °C	-40 °C	I2C IrDA LINbus UART/USART	FLASH				20-SSOP	7 10 b
Zilog Z8F2480HJ020EG	24 KB	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	23	1.8 V	3.6 V	8-Bit	eZ8	8	10	20 MHz	Surface Mount			Internal	105 °C	-40 °C	I2C IrDA LINbus SPI UART/USART	FLASH				28-SSOP		0.209 in	5.3 mm
Zilog Z8F2480QN020EK	24 KB	Brown-out Detect/Reset LVD POR PWM Temp Sensor WDT	37	1.8 V	3.6 V	8-Bit	eZ8			20 MHz	Surface Mount			Internal	105 °C	-40 °C	I2C IrDA LINbus SPI UART/USART	FLASH	1 K	44-QFN 7x7	A/D 8x10b SAR	44-VFQFN Exposed Pad
Zilog Z8F2480AN020SG	24 KB	Brown-out Detect/Reset LED LVD POR PWM Temp Sensor WDT	37	1.8 V	3.6 V	8-Bit	eZ8	8	10	20 MHz	Surface Mount			Internal	70 °C	0 °C	I2C IrDA LINbus SPI UART/USART	FLASH		44-LQFP (10x10)		44-LQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.89

Description

General part information

Z8F2480 Series

eZ8 Encore!® XP® Microcontroller IC 8-Bit 20MHz 24KB (24K x 8) FLASH
