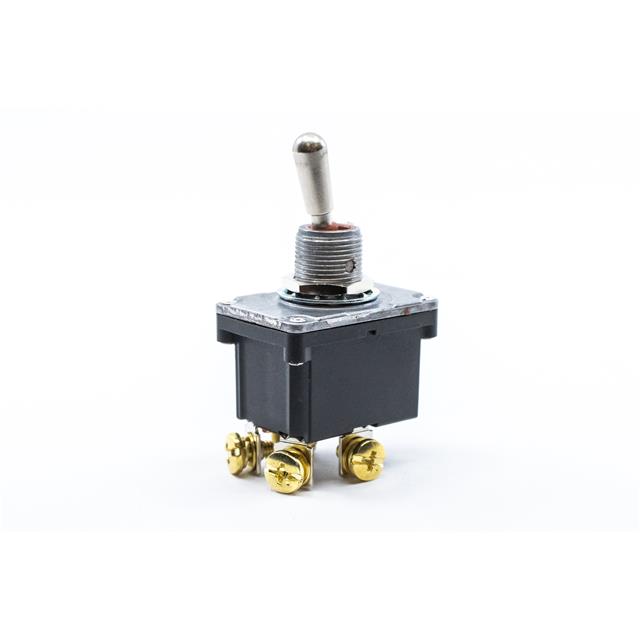

ST4DP5AT1S2

Obsolete

E-Switch

SWITCH TOGGLE DPST-NO 16A 125V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TOGGLE DPST-NO 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ST4DP5AT1S2

Actuator Length [x]	17 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST-NO
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Length [x]	Actuator Type	Circuit	Ingress Protection	Electrical Life	Bushing Thread	Termination Style	Panel Cutout Dimensions [diameter]	Illumination	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC
E-Switch ST4DP5AT1S2	17 mm	Standard Round	DPST-NO	IP68 - Dust Tight Waterproof	10000 Cycles	15/32-32	Screw Terminal	12 mm	Non-Illuminated	55 °C	-10 °C	Off-Mom	30 V	16 A	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPST-NO Panel Mount
