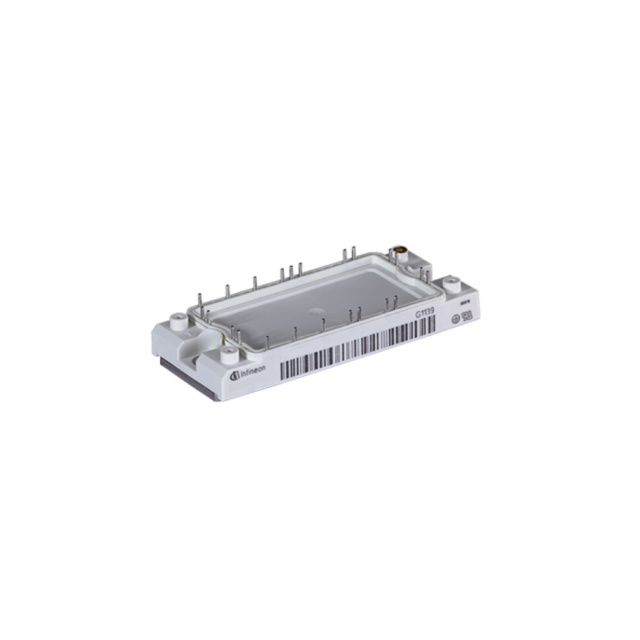

DDB6U100N16RRBOSA1

Unknown

Infineon Technologies

IGBT MOD 1200V 50A 350W

Search across all available documentation for this part.

Unknown

Infineon Technologies

IGBT MOD 1200V 50A 350W

Technical Specifications

Parameters and characteristics for this part

Specification	DDB6U100N16RRBOSA1

Configuration	Single Chopper
Current - Collector (Ic) (Max)	50 A
Current - Collector Cutoff (Max) [Max]	1 mA
Input	Standard
Input Capacitance (Cies) @ Vce	3.3 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Package / Case	Module
Power - Max [Max]	350 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	3.2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Current - Collector Cutoff (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Configuration	Input	Mounting Type	Package / Case	Current - Collector (Ic) (Max)	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	NTC Thermistor	Power - Max [Max]
Infineon Technologies DDB6U100N16RRBOSA1	1 mA	3.2 V	Single Chopper	Standard	Chassis Mount	Module	50 A	Module	1200 V	3.3 nF		350 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Single Chopper 1200 V 50 A 350 W Chassis Mount Module

Technical documentation and resources

No documents available
