2987286

Active

Phoenix Contact

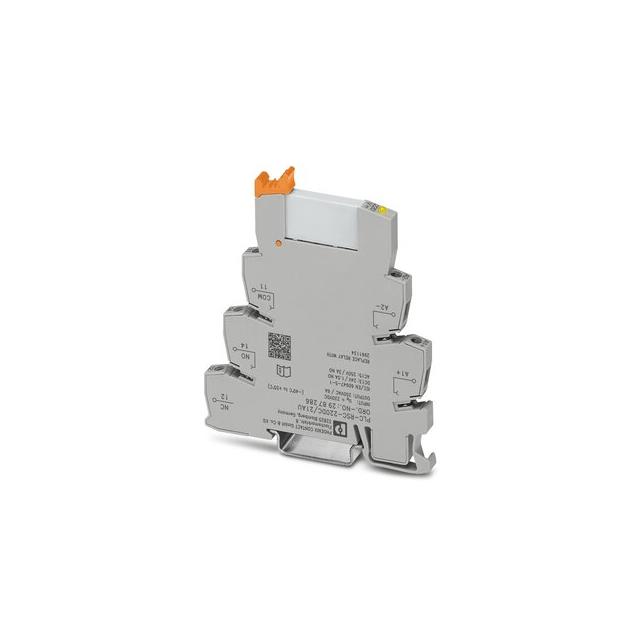

RELAY GEN PURPOSE SPDT 10MA 60V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 10MA 60V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 10MA 60V

Part	Coil Voltage	Coil Resistance	Coil Current	Approval Agency	Operate Time	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Mounting Type	Contact Form	Relay Type	Switching Voltage	Contact Rating (Current)	Coil Type	Termination Style	Features
Phoenix Contact 2987286	60 VDC	20 kOhms	3 mA	cULus, DNV, EAC, UL	7 ms	Gold (Au), Silver (Ag)	55 °C	-25 °C	15 ms	DIN Rail	SPDT (1 Form C)	General Purpose	30 VAC, 36 VDC	10 mA	Non Latching	Screw Terminal	Socket Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 37.66

General part information

General Purpose Relay SPDT (1 Form C) DIN Rail

Technical documentation and resources
