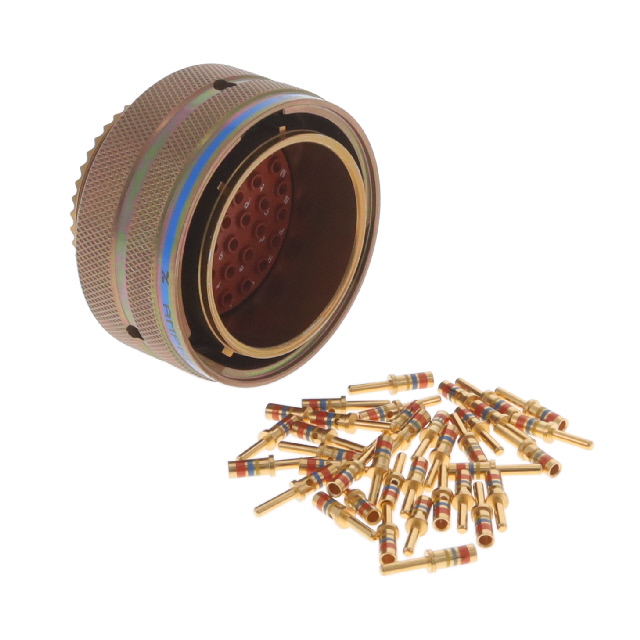

LJT06RT25-37P

Active

Amphenol Aerospace Operations

CONN PLUG MALE 37POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG MALE 37POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	LJT06RT25-37P

Applications	Aviation, Marine, Military
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Cadmium over Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	37
Shell Size - Insert [Min]	25
Shielding	Shielded
Termination	Crimp

Part	Contact Finish - Mating	Shielding	Shell Material	Orientation	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Connector Type	Mounting Type	Fastening Type	Features	Number of Positions	Applications	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Primary Material	Termination	Color
Amphenol Aerospace Operations LJT06RT25-37P	Gold	Shielded	Aluminum Alloy	N	Environment Resistant	37	25	1.27 µm	50 µin	Cadmium over Nickel	Male Pins Plug	Free Hanging (In-Line)	Bayonet Lock	Coupling Nut	37	Aviation Marine Military	MIL-DTL-38999 Series I	-65 ░C	347 °F	Copper Alloy	Metal	Crimp
Amphenol Aerospace Operations LJT06RT-25-29S-014	Gold	Shielded	Aluminum Alloy	N	Environment Resistant	29	25	1.27 µm	50 µin		Female Sockets Plug	Free Hanging (In-Line)	Bayonet Lock	Coupling Nut	29	Aviation Marine Military	MIL-DTL-38999 Series I	-65 ░C	347 °F	Copper Alloy	Metal	Crimp	Olive Drab
Amphenol Aerospace Operations LJT06RT-25-61PA-014	Gold	Shielded	Aluminum Alloy	A	Environment Resistant	61	25	1.27 µm	50 µin		Male Pins Plug	Free Hanging (In-Line)	Bayonet Lock	Coupling Nut	61	Aviation Marine Military	MIL-DTL-38999 Series I	-65 ░C	347 °F	Copper Alloy	Metal	Crimp	Olive Drab
Amphenol Aerospace Operations LJT06RT-25-61P	Gold	Shielded	Aluminum Alloy	N	Environment Resistant	61	25	1.27 µm	50 µin	Cadmium over Nickel	Male Pins Plug	Free Hanging (In-Line)	Bayonet Lock	Coupling Nut	61	Aviation Marine Military	MIL-DTL-38999 Series I	-65 ░C	347 °F	Copper Alloy	Metal	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position Circular Connector Plug, Male Pins Crimp
