Q-0D03B0005036i

Active

Amphenol Custom Cable

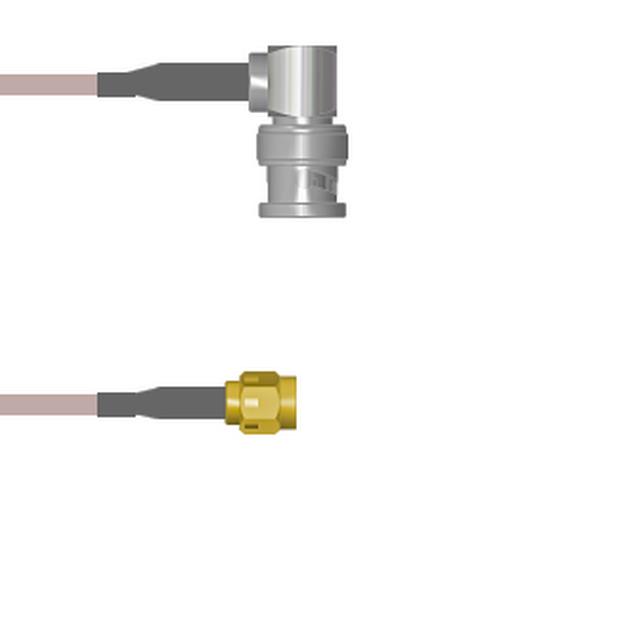

CBL ASSY BNC-SMA PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D03B0005036i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D03B0005036i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0D03B0 Series

Part	1st Contact Gender	1st Connector	2nd Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	1st Connector Mounting Type	Cable Type	2nd Contact Gender	Color	Features	2nd Connector	Style	Length	Length	Length
Amphenol Custom Cable Q-0D03B00051.5M	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Male	Copper	Shielded	SMA Plug	BNC to SMA	59.1 in	4.9 ft	1.5 m
Amphenol Custom Cable Q-0D03B0003003M	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-174	Male	Black	Shielded	SMA Plug	BNC to SMA	118.1 in	9.8 '	3 m
Amphenol Custom Cable Q-0D03B0005002M	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Male	Copper	Shielded	SMA Plug	BNC to SMA	78.7 in	6.6 ft	2 m
Amphenol Custom Cable Q-0D03B0005036i	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Male	Copper	Shielded	SMA Plug	BNC to SMA	36 in		91.44 cm
Amphenol Custom Cable Q-0D03B0003084i	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-174	Male	Black	Shielded	SMA Plug	BNC to SMA	84 in	7 ft	2.1 m
Amphenol Custom Cable Q-0D03B0005003i	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Male	Copper	Shielded	SMA Plug	BNC to SMA	3 in		76.2 mm
Amphenol Custom Cable Q-0D03B0003006i	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-174	Male	Black	Shielded	SMA Plug	BNC to SMA	6 in		152.4 mm
Amphenol Custom Cable Q-0D03B0005072i	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-316	Male	Copper	Shielded	SMA Plug	BNC to SMA	72 in	6 ft	1.8 m
Amphenol Custom Cable Q-0D03B0003002M	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-174	Male	Black	Shielded	SMA Plug	BNC to SMA	78.7 in	6.6 ft	2 m
Amphenol Custom Cable Q-0D03B0003072i	Male	BNC Plug Right Angle	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	RG-174	Male	Black	Shielded	SMA Plug	BNC to SMA	72 in	6 ft	1.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.63
		25	$ 83.95
		50	$ 82.27
		100	$ 80.59
		250	$ 78.90

Description

General part information

Q-0D03B0 Series

Cable Assembly Coaxial BNC to SMA RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
