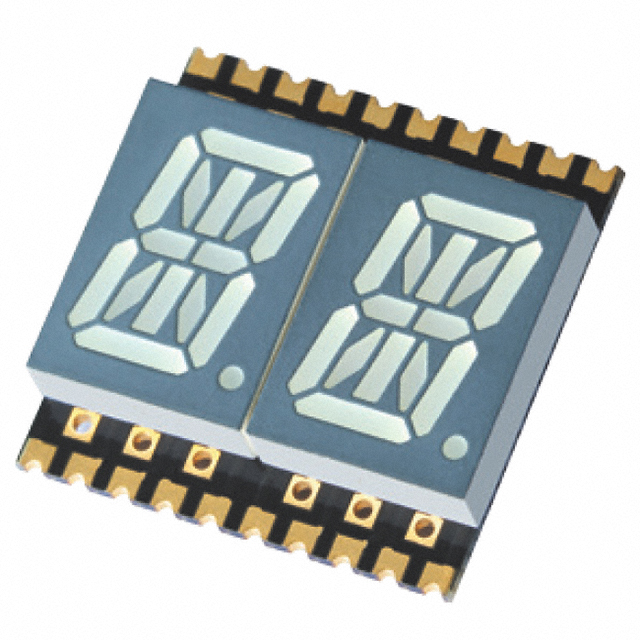

XZFAMYK10A2
ActiveSunLED
DISPLAY 14SEG 0.4" DBL YLW 32SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFAMYK10A2
ActiveSunLED
DISPLAY 14SEG 0.4" DBL YLW 32SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFAMYK10A2 |
|---|---|
| Color | Yellow |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 14-Segment, Alphanumeric |
| Millicandela Rating | 12 mcd |
| Number of Characters | 2 |
| Package / Case | 32-SMD, No Lead |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 0.74 " |
| Size / Dimension [y] | 18.8 mm |
| Size / Dimension [z] | 0.748 in |
| Size / Dimension [z] | 19 mm |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 4.28 | |
| 500 | $ 3.61 | |||
| 750 | $ 3.48 | |||
| 1250 | $ 3.31 | |||
| 2500 | $ 3.17 | |||
Description
General part information
XZFAMYK10 Series
Display Modules - LED Character and Numeric Yellow 14-Segment, Alphanumeric 2 Character Common Anode 1.95V 10mA 0.748" H x 0.740" W x 0.148" D (19.00mm x 18.80mm x 3.75mm) 32-SMD, No Lead
