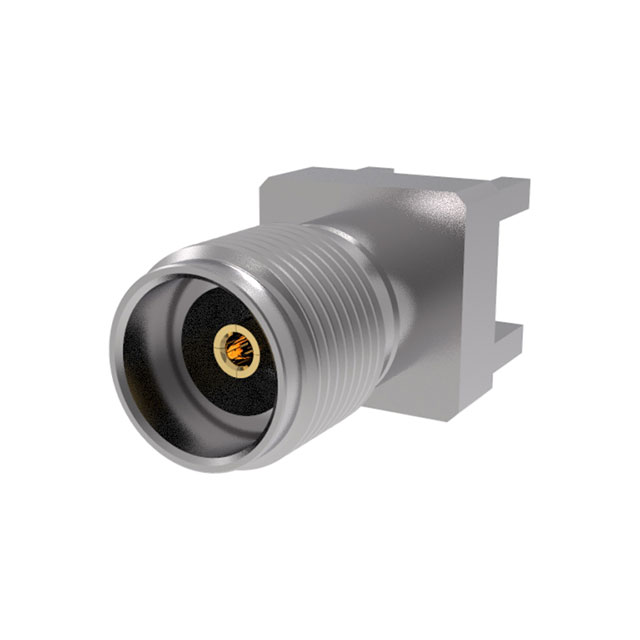

TMB-V5FS-3SM

Active

CarlisleIT

3.5(F)STR,VL,MIXED-TECH,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

3.5(F)STR,VL,MIXED-TECH,SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMB-V5FS-3SM	TMB-V5 Series

Body Finish	Gold	Gold
Body Material	Brass	Stainless Steel, Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	3.5 mm	3.5 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Compression, Solder
Features	-	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	34 GHz	34 GHz
Housing Color	Gold	Silver, Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.6 dB	0.35 - 0.6 dB
Mating Cycles	500	500
Mounting Feature	-	Flange
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Screw, Solder
Voltage Rating	400 V	400 - 500 V

3.50MM FEMALE 2 HOLE FLANGE POST

Part	Connector Style	Center Contact Plating	Contact Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Material	Frequency - Max [Max]	Voltage Rating	Number of Ports	Body Material	Shield Termination	Housing Color	Mating Cycles	Impedance	Mounting Feature	Insertion Loss	Features	Body Finish
CarlisleIT TMB-V5F2-3LC	3.5 mm	Gold	Compression	Surface Mount	-65 ░C	165 °C	Female Socket, Jack	Beryllium Copper	34 GHz	500 V	1	Stainless Steel	Screw	Silver	500	50 Ohms	Flange	0.35 dB
CarlisleIT TMB-V5F2-3L1	3.5 mm	Gold	Compression	Surface Mount	-65 ░C	165 °C	Female Socket, Jack	Beryllium Copper	34 GHz	500 V	1	Stainless Steel	Screw	Silver	500	50 Ohms	Flange	0.35 dB	Field Replaceable, For Hermetically Sealed Pin
CarlisleIT TMB-V5FS-3SM	3.5 mm	Gold	Solder	Through Hole	-65 ░C	165 °C	Female Socket, Jack	Beryllium Copper	34 GHz	400 V	1	Brass	Solder	Gold	500	50 Ohms		0.6 dB		Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.5mm Connector Jack, Female Socket 50 Ohms Through Hole Solder
