8060-1G3

Obsolete

TE Connectivity AMP Connectors

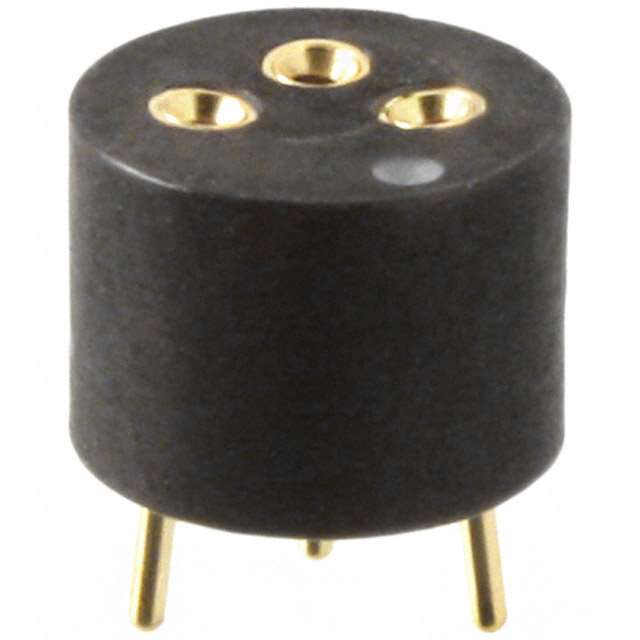

CONN TRANSIST TO-5 3POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN TRANSIST TO-5 3POS GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 (Round) Pos Transistor, TO-5 Socket Gold Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	8060-1G3	8060 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post	Beryllium Copper	Beryllium Copper
Features	Closed Frame	Closed Frame
Housing Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	3	3 - 4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Termination	Solder	Solder
Type	Transistor, TO-5	Transistor, TO-5

CONN TRANSIST TO-5 3POS GOLD

Part	Number of Positions or Pins (Grid)	Contact Finish - Mating	Termination	Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Features	Contact Material - Mating	Contact Material - Post	Mounting Type
TE Connectivity AMP Connectors 8060-1G34	3	Gold	Solder	Transistor, TO-5
TE Connectivity AMP Connectors 8060-1G17	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper
TE Connectivity AMP Connectors 8060-1G11	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G3	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G7	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G4	4	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
TE Connectivity AMP Connectors 8060-1G5	3	Gold	Solder	Transistor, TO-5	Gold	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Closed Frame	Beryllium Copper	Beryllium Copper	Through Hole
