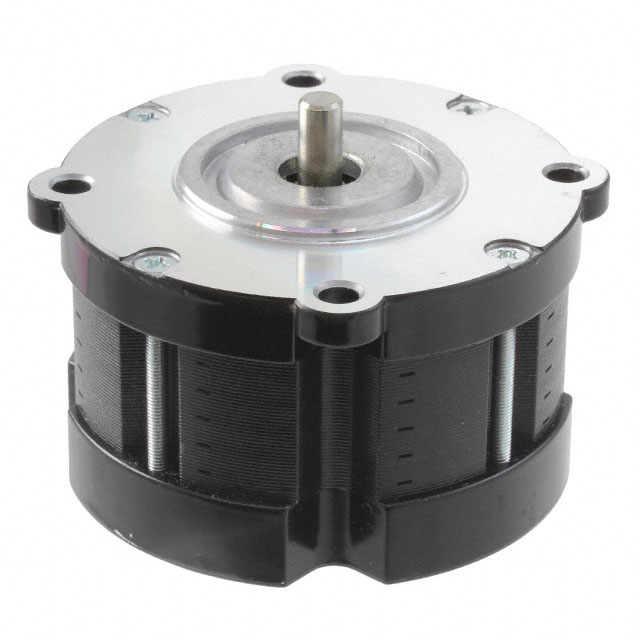

29SM-K242BT01CA

Active

NMB TECHNOLOGIES

STEPPER MOTOR HYBRID BIPOLAR 24V

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

STEPPER MOTOR HYBRID BIPOLAR 24V

Technical Specifications

Parameters and characteristics for this part

Specification	29SM-K242BT01CA

Coil Type	Bipolar
Diameter - Shaft [diameter]	6 mm
Diameter - Shaft [diameter]	0.236 in
Features	Round Shaft
Length - Shaft and Bearing [x]	0.453 in
Length - Shaft and Bearing [x]	11.5 mm
Mounting Hole Spacing	47.14 mm
Mounting Hole Spacing	1.856 in
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [diameter]	2.795 in
Size / Dimension [diameter]	71 mm
Step Angle	1.8 °
Steps per Revolution	200
Termination Style	Connector
Type	Hybrid
Voltage - Rated	24 VDC

Part	Rotor Inertia	Mounting Hole Spacing	Mounting Hole Spacing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Size / Dimension [diameter]	Size / Dimension [diameter]	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Type	Weight	Weight	Length - Shaft and Bearing	Length - Shaft and Bearing	Current Rating (Amps)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Coil Type	Step Angle	Coil Resistance	Termination Style	Voltage - Rated	Steps per Revolution	Features	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]
NMB TECHNOLOGIES 29SM-K711-00V	660 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	1450 mNm	205.36 oz-in	Hybrid	1.4 kg	3.1 lbs	0.984 in	25 mm	3 A	-10 °C	50 °C	Unipolar	1.8 °	1 Ohms	Wire Leads	24 VDC	200	Round Shaft
NMB TECHNOLOGIES 29SM-K379-00V	330 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	820 mNm	116.14 oz-in	Hybrid	861.8 g	1.9 lbs	0.984 in	25 mm	1.9 A	-10 °C	50 °C	Unipolar	1.8 °	1.75 Ohms	Wire Leads	24 VDC	200	Round Shaft
NMB TECHNOLOGIES 29SM-K242BT01CA		47.14 mm	1.856 in	0.236 in	6 mm	2.795 in	71 mm			Hybrid						-10 °C	50 °C	Bipolar	1.8 °		Connector	24 VDC	200	Round Shaft	0.453 in	11.5 mm
NMB TECHNOLOGIES 29SM-K138-99V	515 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	1200 mNm	169.96 oz-in	Hybrid Dual Shaft	1.2 kg	2.6 lbs	0.984 in	25 mm	2.6 A	-10 °C	50 °C	Unipolar	1.8 °	1.25 Ohms	Wire Leads	24 VDC	200	Round Shaft
NMB TECHNOLOGIES 29SM-K550-00V	165 gcm˛	47.14 mm	1.856 in	0.315 in	8 mm	2.795 in	71 mm	380 mNm	53.82 oz-in	Hybrid	589.7 g	1.3 lbs	0.984 in	25 mm	1.5 A	-10 °C	50 °C	Unipolar	1.8 °		Wire Leads	24 VDC	200	Round Shaft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 29.52
