DM080104

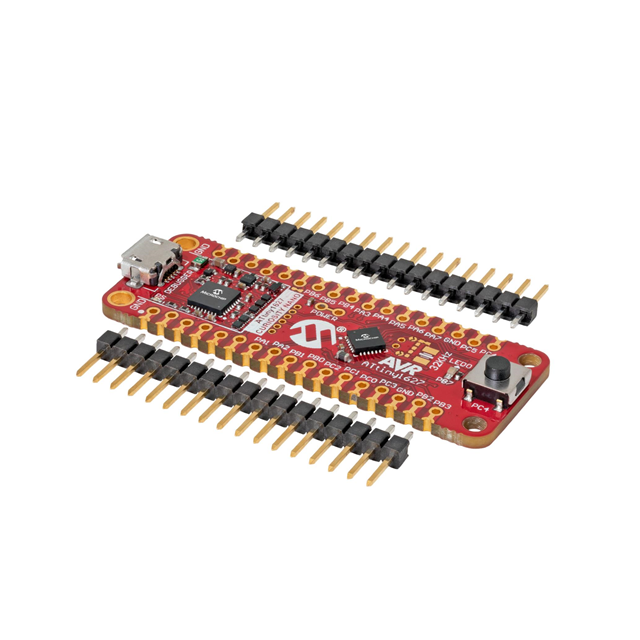

ActiveATTINY1627 CURIOSITY NANO BRD
Deep-Dive with AI
Search across all available documentation for this part.
DM080104
ActiveATTINY1627 CURIOSITY NANO BRD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DM080104 | ATTINY1627 Series |
|---|---|---|
| Board Type | Evaluation Platform | Evaluation Platform |
| Connectivity | - | I2C, SPI, UART/USART |
| Contents | Accessories, Board(s) | Accessories, Board(s) |
| Core Processor | AVR | AVR |
| Core Size | - | 8-Bit |
| Data Converters | - | 15 |
| Data Converters | - | 12 b |
| EEPROM Size | - | 8 |
| EEPROM Size | - | 256 |
| Mounting Type | Fixed | Surface Mount, Fixed |
| Number of I/O | - | 22 |
| Operating Temperature | - | 85 - 125 °C |
| Operating Temperature | - | -40 °C |
| Oscillator Type | - | Internal |
| Package / Case | - | 24-VFQFN Exposed Pad |
| Platform | Curiosity Nano | Curiosity Nano |
| Program Memory Size | - | 16 KB |
| Program Memory Type | - | FLASH |
| RAM Size | - | 2 K |
| Speed | - | 20 MHz |
| Suggested Programming Environment | Atmel Studio, MPLAB X | Atmel Studio, MPLAB X |
| Supplier Device Package | - | 24-VQFN (4x4) |
| Type | MCU 8-Bit | MCU 8-Bit |
| Utilized IC / Part | ATtiny1627 | ATtiny1627 |
| Voltage - Supply (Vcc/Vdd) | - | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | - | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.49 | |
ATTINY1627 Series
12-bit diff ADC with PGA
| Part | Oscillator Type | Supplier Device Package | Mounting Type | Program Memory Type | Program Memory Size | Data Converters [custom] | Data Converters [custom] | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Processor | EEPROM Size [custom] | EEPROM Size [custom] | Connectivity [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Speed | Package / Case | RAM Size | Number of I/O | Core Size | Type | Suggested Programming Environment | Contents | Platform | Utilized IC / Part | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ATTINY1627-MU | Internal | 24-VQFN (4x4) | Surface Mount | FLASH | 16 KB | 15 | 12 b | 5.5 V | 1.8 V | AVR | 8 | 256 | I2C, SPI, UART/USART | 85 °C | -40 °C | 20 MHz | 24-VFQFN Exposed Pad | 2 K | 22 | 8-Bit | ||||||
Microchip Technology ATTINY1627-MUR | Internal | 24-VQFN (4x4) | Surface Mount | FLASH | 16 KB | 15 | 12 b | 5.5 V | 1.8 V | AVR | 8 | 256 | I2C, SPI, UART/USART | 85 °C | -40 °C | 20 MHz | 24-VFQFN Exposed Pad | 2 K | 22 | 8-Bit | ||||||
Microchip Technology DM080104 | Fixed | AVR | MCU 8-Bit | Atmel Studio, MPLAB X | Accessories, Board(s) | Curiosity Nano | ATtiny1627 | Evaluation Platform | ||||||||||||||||||
Microchip Technology ATTINY1627-MF | Internal | 24-VQFN (4x4) | Surface Mount | FLASH | 16 KB | 15 | 12 b | 5.5 V | 1.8 V | AVR | 8 | 256 | I2C, SPI, UART/USART | 125 °C | -40 °C | 20 MHz | 24-VFQFN Exposed Pad | 2 K | 22 | 8-Bit | ||||||
Microchip Technology ATTINY1627-MFR | Internal | 24-VQFN (4x4) | Surface Mount | FLASH | 16 KB | 15 | 12 b | 5.5 V | 1.8 V | AVR | 8 | 256 | I2C, SPI, UART/USART | 125 °C | -40 °C | 20 MHz | 24-VFQFN Exposed Pad | 2 K | 22 | 8-Bit |
Description
General part information
ATTINY1627 Series
The ATtiny1627 is a microcontroller featuring the AVR® CPU with hardware multiplier, running at up to 20 MHz and with 16 KB Flash, 2 KB SRAM, and 256B EEPROM in a 24-pin VQFN 4 x 4 mm package. The family uses the latest Core Independent Peripherals with low-power features, including Event System, intelligent analog and advanced peripherals.
The new 12-bit ADC offers true differential measuring capabilities with optional hardware accumulation of up to 1024 samples, which effectively gives up to 17-bits resolution. With sampling rates up to 375 ksps, the analog data is available very rapidly. The Programmable Gain Amplifier (PGA) for the ADC can amplify single-ended and differential analog inputs to make it possible to measure even small amplitude signals efficiently.
[ATtiny1627 Product Family Overview (tinyAVR 2 Family)](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/avr-mcus/attiny1627)
Documents
Technical documentation and resources
