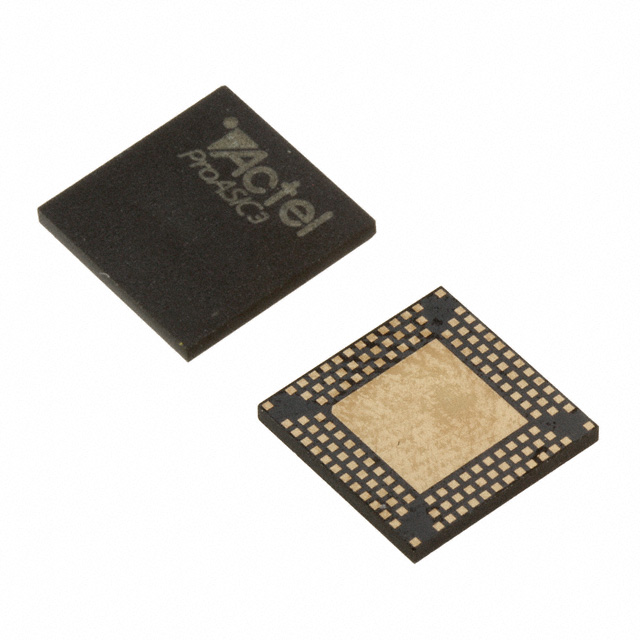

AGL125V2-QNG132I

Obsolete

Microsemi Corporation

IC FPGA 84 I/O 132QFN

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

IC FPGA 84 I/O 132QFN

Technical Specifications

Parameters and characteristics for this part

Specification	AGL125V2-QNG132I

Mounting Type	Surface Mount
Number of Gates	125000
Number of I/O	84 I/O
Number of Logic Elements/Cells	3072
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	132-WFQFN
Supplier Device Package	8x8, 132-QFN
Voltage - Supply [Max]	1.575 V
Voltage - Supply [Min]	1.14 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Number of Logic Elements/Cells	Number of Gates	Number of I/O	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Microsemi Corporation AGL125V2-FGG144T	1.575 V	1.14 V	13x13 144-FPBGA	3072	125000	97	144-LBGA	Surface Mount	70 °C	0 °C
Microsemi Corporation AGL125V2-FG144T	1.575 V	1.14 V	13x13 144-FPBGA	3072	125000	97	144-LBGA	Surface Mount	70 °C	0 °C
Microsemi Corporation AGL125V2-QNG132I	1.575 V	1.14 V	132-QFN 8x8	3072	125000	84 I/O	132-WFQFN	Surface Mount	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGLOO Field Programmable Gate Array (FPGA) IC 84 36864 3072 132-WFQFN

Technical documentation and resources

No documents available
