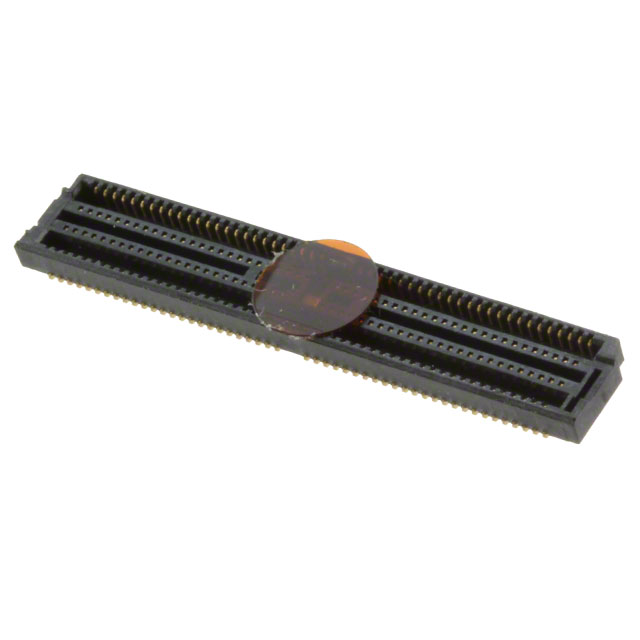

LTH-050-01-G-D-A-K

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	LTH-050-01-G-D-A-K

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.066 in
Height Above Board	1.68 mm
Mated Stacking Heights	2.31 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Number of Positions	Height Above Board	Height Above Board	Features	Pitch [x]	Pitch [x]	Mated Stacking Heights	Connector Type	Contact Finish
Samtec Inc. LTH-050-01-G-D-A-K	10 Áin	0.25 Ám	2	Surface Mount	100	0.066 in	1.68 mm	Board Guide Pick and Place	0.5 mm	0.02 in	2.31 mm	Header Outer Shroud Contacts	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
