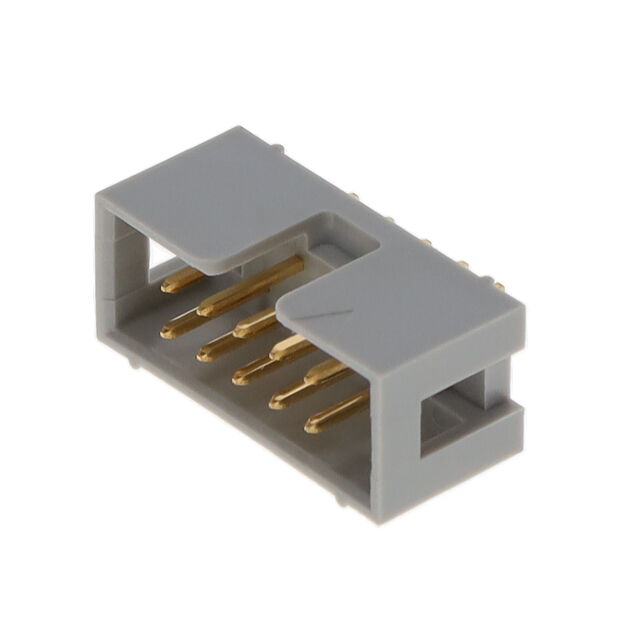

7610-6002 PL

Active

3M (TC)

HDR SOCKET LOW PROFILE 10 POS GR

Search across all available documentation for this part.

Active

3M (TC)

HDR SOCKET LOW PROFILE 10 POS GR

Technical Specifications

Parameters and characteristics for this part

Specification	7610-6002 PL

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Length - Post [x]	0.11 in
Contact Length - Post [x]	2.8 mm
Contact Type	Male Pin
Insulation Color	Gray
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish - Post	Connector Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Rows	Number of Positions	Pitch - Mating	Pitch - Mating	Shelf Life Start	Tape Type	Shelf Life	Thickness	Thickness	Thickness	Color	Width	Width	Width	Length	Length	Length
3M (TC) 7610-5002 PL	Gold	All	0.11 in	2.8 mm	2.54 mm	0.1 in	Gray	Gold	Header	Solder	Flash	0.203 Ám	8 Áin	Male Pin	2	10	0.1 in	2.54 mm
3M (TC) 7610-1/2"X50YD																			Date of Purchase	Reflective	12 Months	0.102 mm	4 mils	0.004 in	Gray	0.5 in	12.7 mm	0.5 in	50 yds	150 ft	45.7 m
3M (TC) 7610-6002 PL	Gold	All	0.11 in	2.8 mm	2.54 mm	0.1 in	Gray	Gold	Header	Solder	Flash	0.203 Ám	8 Áin	Male Pin	2	10	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header 10 position 0.100" (2.54mm)
