BGS14AN16E6327XTSA1
ObsoleteInfineon Technologies
IC RF SWITCH SP4T 3GHZ TSNP16-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BGS14AN16E6327XTSA1
ObsoleteInfineon Technologies
IC RF SWITCH SP4T 3GHZ TSNP16-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BGS14AN16E6327XTSA1 |
|---|---|
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 100 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.69 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |

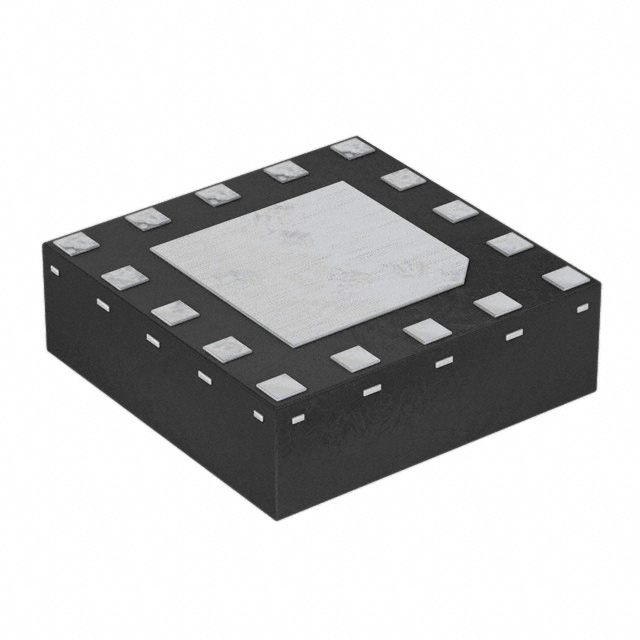

| Package / Case | 16-XFQFN Exposed Pad |
| RF Type | W-CDMA |
| Supplier Device Package | TSNP-16-1 |
| Test Frequency | 2.69 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 4.7 V |
| Voltage - Supply [Min] | 2.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BGS14 Series
RF Switch IC W-CDMA SP4T 3 GHz 50Ohm TSNP-16-1
