794074-2

Active

TE Connectivity AMP Connectors

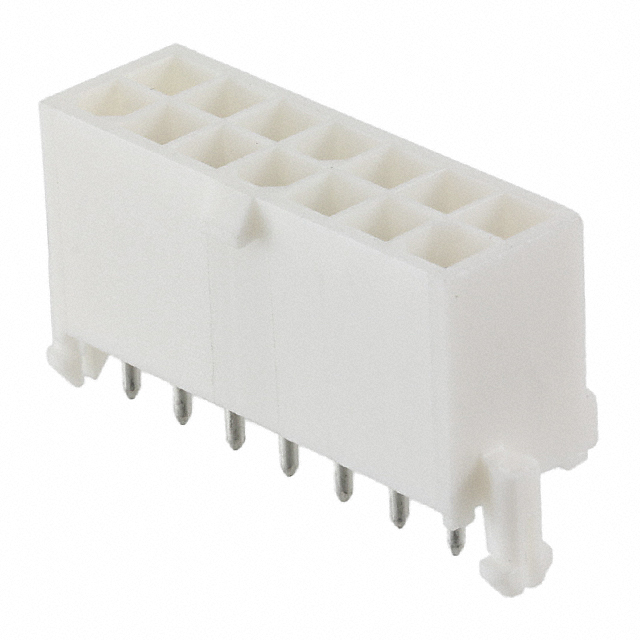

CONN HEADER VERT 14POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 14POS 4.14MM

Technical Specifications

Parameters and characteristics for this part

Specification	794074-2

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch - Mating	4.14 mm
Pitch - Mating	0.163 in
Row Spacing - Mating	4.14 mm
Row Spacing - Mating	0.163 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 14POS 4.14MM

Part	Style	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Termination	Contact Finish - Mating	Number of Rows	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Insulation Color	Number of Positions	Contact Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Mounting Type	Voltage Rating	Applications	Connector Type	Fastening Type	Current Rating (Amps)
TE Connectivity AMP Connectors 794074-2	Board to Cable/Wire	Nylon, Polyamide (PA)	4.14 mm	0.163 in	-20 C	105 ░C	Shrouded - 4 Wall	30 Áin	0.76 Ám	4.45 mm	0.175 in	All	Solder	Gold	2	13.5 mm	0.531 in	4.14 mm	0.163 in	Brass	UL94 V-0	White	14	Male Pin	Tin-Lead	150 Áin	3.81 Ám	Circular	Through Hole	600 VAC	General Purpose	Header	Locking Ramp	Varies by Wire Gauge
