PS0SXDH60

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

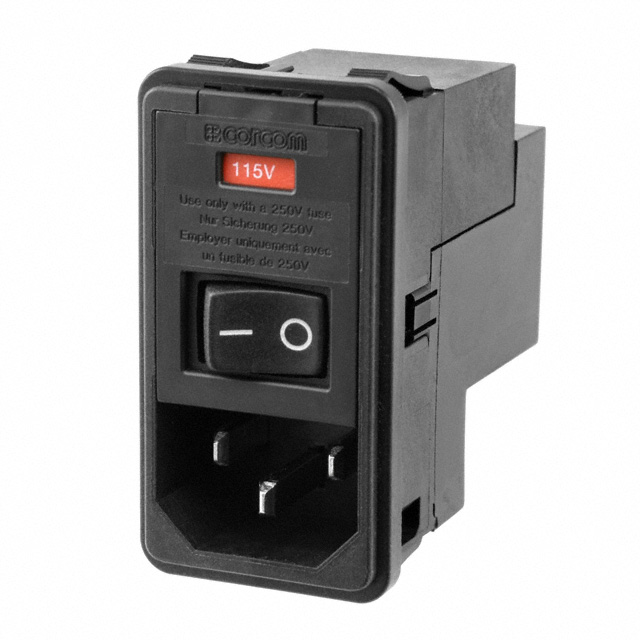

PS0SXDH60

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PS0SXDH60	PS0S Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A	3 - 10 A
Current Rating - Filter	6 A	3 - 10 A
Features	Voltage Selector	Conversion Clip, Shielded, Voltage Selector, Interconnection Block
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial, Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness [Max]	2.9 mm	2.11 - 2.9 mm
Panel Thickness [Max]	0.114 in	0.083 - 0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

PS0S Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet	Connector Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Switch Features	Connector Style	Panel Cutout Dimensions	Mounting Type	Termination	Termination	Termination	Filter Type	Current Rating - Appliance Inlet	Features	Current Rating - Filter
TE Connectivity Corcom Filters PS0SSSH3A	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	3 A	Conversion Clip, Shielded, Voltage Selector	3 A
TE Connectivity Corcom Filters PS0S0SSX0	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	10 A	Conversion Clip	10 A
TE Connectivity Corcom Filters PS0S0SM3E	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	3 A	Conversion Clip, Shielded	3 A
TE Connectivity Corcom Filters PS0SSDH6A	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	6 A	Shielded, Voltage Selector	6 A
TE Connectivity Corcom Filters PS0SXDS3B	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	3 A	Shielded, Voltage Selector	3 A
TE Connectivity Corcom Filters PS0S0DHX0	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	10 A		10 A
TE Connectivity Corcom Filters PS0SXSSX0	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	10 A	Conversion Clip, Voltage Selector	10 A
TE Connectivity Corcom Filters PS0S0SBX0	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.11 mm	0.083 "	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	10 A	Conversion Clip, Interconnection Block	10 A
TE Connectivity Corcom Filters PS0SXDH60	CSA, UL, VDE	Fuse Holder, Twin Fused	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	6 A	Voltage Selector	6 A
TE Connectivity Corcom Filters PS0SSSS6A	CSA, UL, VDE	Fuse Holder	120 VAC	Receptacle, Male Blades - Module	2.9 mm	0.114 in	0.79 mm	0.031 "	Switch On-Off	IEC 320-C14	Variable Size	Panel Mount, Snap-In	0.187 "	4.7 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	6 A	Conversion Clip, Shielded, Voltage Selector	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.01
		10	$ 28.03
		25	$ 26.82
		80	$ 25.09
		320	$ 23.70

Description

General part information

PS0S Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
