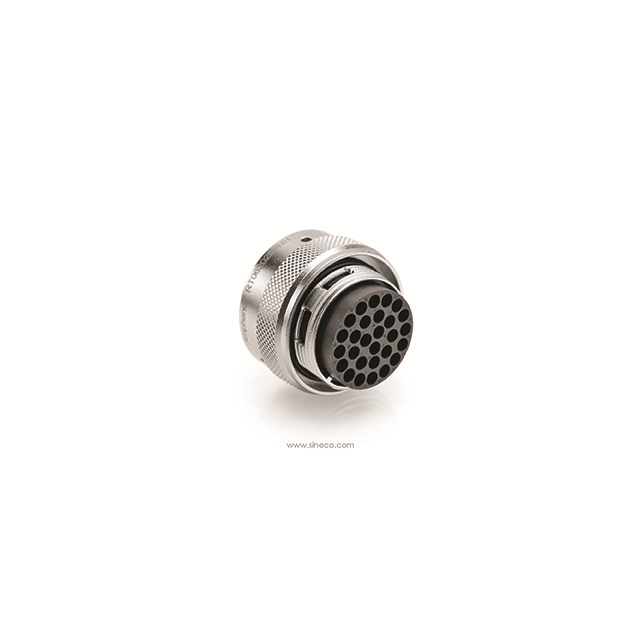

RT062028PNH03

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL, 1

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL, 1

Technical Specifications

Parameters and characteristics for this part

Specification	RT062028PNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	1 Gasket, 1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	28
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	28
Shell Size - Insert [Min]	20
Shielding	Shielded
Type	For Male Pins

Part	Contact Type	Orientation	Mounting Type	Shell Finish	Shielding	Number of Positions	Ingress Protection	Type	Fastening Type	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Material Flammability Rating	Insert Material	Housing Color	Shell Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Features	Contact Size	Includes	Color	Voltage Rating	Contact Finish - Mating	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Primary Material	Applications	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Termination
Amphenol Sine Systems Corp RT062028SNH	Crimp	N	Free Hanging (In-Line)	Nickel	Shielded	28	IP67 - Dust Tight Waterproof	For Female Sockets	Bayonet Lock	Circular	28	20	UL94 V-0	Thermoplastic	Silver	Zinc Alloy	Plug Housing	-40 °C	105 ░C	Contacts Not Included	Coupling Nut	16
Amphenol Sine Systems Corp RT062028PNH03	Crimp	N	Free Hanging (In-Line)	Nickel	Shielded	28	IP67 - Dust Tight Waterproof	For Male Pins	Bayonet Lock	Circular	28	20	UL94 V-0	Thermoplastic	Silver	Zinc Alloy	Plug Housing	-40 °C	125 °C	Contacts Not Included	Coupling Nut	16	1 Connector 1 Gasket 1 O-Ring
Amphenol Sine Systems Corp RT062028SNH03SS-K		N	Free Hanging (In-Line)	Nickel	Shielded	28	IP67 IP69K		Bayonet Lock		28	20	UL94 V-0	Polyamide (PA66) Nylon 6/6		Zinc Die Cast	Female Sockets Plug	-40 °C	115 °C		Backshell Coupling Nut			Silver	500 VAC	Gold	Nickel Zinc Die Cast	16 mm 17 mm	0.63 in 0.669 in	Metal	Aerospace Automation Industrial Telecom Transportation	Brass	3 A	Flash	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 20.79

General part information

28 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
