R143207000

Active

Radiall USA, Inc.

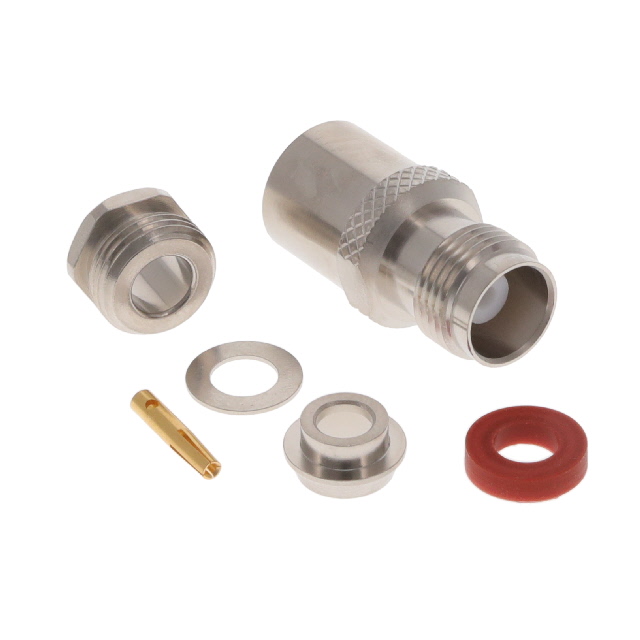

TNC / STRAIGHT JACK CLAMP TYPE C

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / STRAIGHT JACK CLAMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Specification	R143207000

Body Finish	Nickel
Body Material	Brass
Cable Group	400, 223, 141, RG-58, 142
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Center Contact Plating	Mounting Type	Connector Style	Body Material	Body Finish	Connector Type	Cable Group	Center Contact Material	Shield Termination	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Voltage Rating	Dielectric Material	Contact Termination	Mating Cycles	Frequency - Max [Max]	Impedance
Radiall USA, Inc. R143207000	Gold	Free Hanging (In-Line)	TNC	Brass	Nickel	Female Socket Jack	141 142 223 400 RG-58	Beryllium Copper	Clamp	Silver	-65 ░C	165 °C	1	500 V	Polytetrafluoroethylene (PTFE)	Solder	500	11 GHz	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.04

General part information

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
