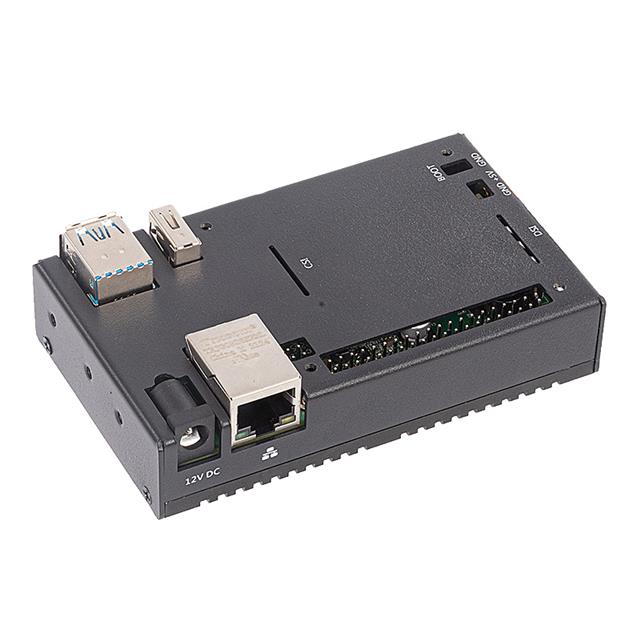

ED-CM4NANO-0132-C

Active

EDATEC

SBC 1.5GHZ 4 CORE 32GB/1GB RAM

Search across all available documentation for this part.

Active

EDATEC

SBC 1.5GHZ 4 CORE 32GB/1GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ED-CM4NANO-0132-C

Cooling Type	Heat Sink
Core Processor	Raspberry Pi CM4 # CM4001032: ARM Cortex-A72
Ethernet	100 Mbps, 10 Mbps, 1000 Mbps
Ethernet	RJ45
Form Factor	Raspberry Pi
Number of Cores	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
RAM Capacity/Installed	1 GB, 32 GB
Size / Dimension [x]	103 mm
Size / Dimension [x]	4.055 in
Size / Dimension [y]	62 mm
Size / Dimension [y]	2.441 in
Speed	1.5 GHz
Storage Interface	microSD, eMMC
USB	USB 2.0 (1), USB 3.0 (2)
Video Outputs	HDMI

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cooling Type	Speed	Storage Interface	Core Processor	USB	Video Outputs	Form Factor	Number of Cores	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	RAM Capacity/Installed	Ethernet	Ethernet
EDATEC ED-CM4NANO-0132-C	-25 °C	60 °C	Heat Sink	1.5 GHz	eMMC microSD	Raspberry Pi CM4 # CM4001032: ARM Cortex-A72	USB 2.0 (1) USB 3.0 (2)	HDMI	Raspberry Pi	4	103 mm	4.055 in	62 mm	2.441 in	1 GB 32 GB	10 Mbps 100 Mbps 1000 Mbps	RJ45

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 102.50

General part information

Single Board Computer 1.5GHz 4 Core 32GB/1GB RAM Raspberry Pi CM4 # CM4001032: ARM Cortex-A72
