L6R06H-090

Active

Tri-Mag, LLC

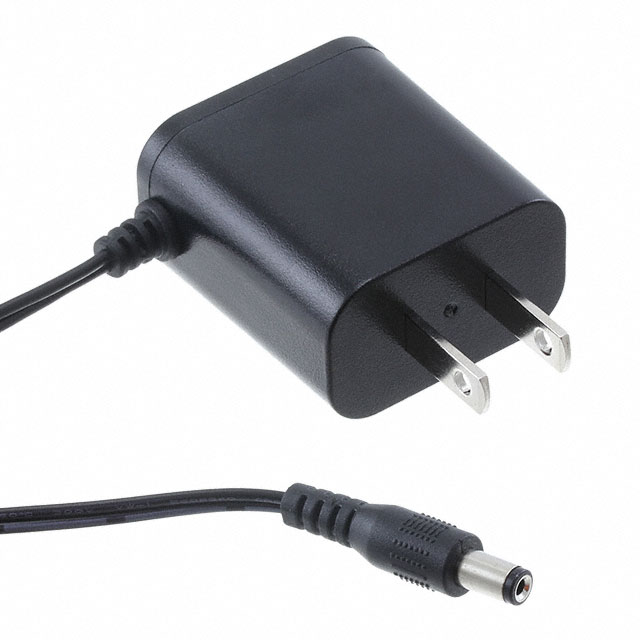

AC/DC WALL MOUNT ADAPTER 9V 6W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC WALL MOUNT ADAPTER 9V 6W

Technical Specifications

Parameters and characteristics for this part

AC/DC WALL MOUNT ADAPTER 9V 6W

Part	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization	Standard Number	Input Connector	Input Type	Approval Agency	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Form	No Load Power Consumption	Applications	Voltage - Output	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]
Tri-Mag, LLC L6R06H-090	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	Positive Center	62368-1	NEMA 1-15P	Fixed Blade	cUL, FCC, UL	1.5 m	59 in	10 °C	40 °C	670 mA	6 W	North America	Wall Mount (Class II)	100 mW	ITE (Commercial)	9 V	Level VI	42 mm	1.65 "	1.54 in	39.2 mm	0.93 in	23.7 mm	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
