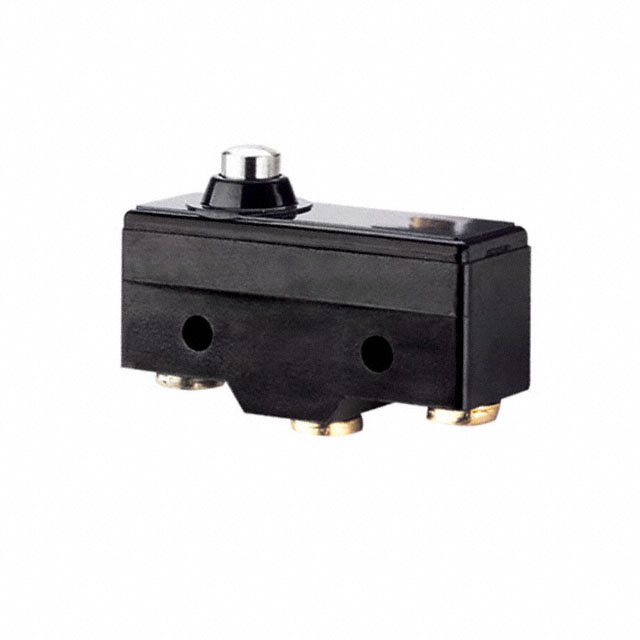

GPTBRH11

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 20A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 20A 125V

Part	Current Rating (Amps)	Release Force	Operating Position	Operating Position	Pretravel	Pretravel	Differential Travel	Differential Travel	Overtravel	Overtravel	Operating Force	Circuit	Switch Function	Termination Style	Mechanical Life	Actuator Type	Voltage Rating - AC
ZF Electronics GPTBRH11	20 A	201 gf	1.266 "	32.2 mm	0.7 mm	0.028 in	0.008 in	0.2 mm	3.6 mm	0.141 in	649 gf	SPDT	On-Mom	Screw Terminal	20000000 Cycles	Roller Plunger	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 16.88

General part information

Switch SPDT Panel Mount

Technical documentation and resources

No documents available
