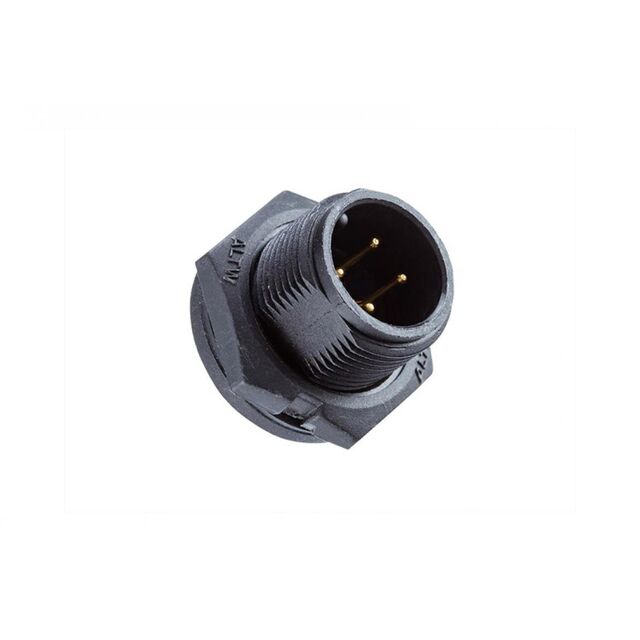

BD-06PMMP-SC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 06 PIN

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 06 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06PMMP-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Color	Contact Finish - Mating	Mounting Feature	Shell Size - Insert	Connector Type	Number of Positions	Insert Material	Voltage Rating	Termination	Current Rating (Amps)	Orientation	Ingress Protection	Shell Material	Shielding	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
Amphenol LTW BD-06PMMP-SC7001	Black	Gold	Bulkhead - Front Side Nut	B	Male Pins Receptacle	6	Polyamide (PA) Nylon Glass Filled	250 VDC	Solder	5 A	Keyed	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic	-40 °C	105 ░C	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 6.82

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
