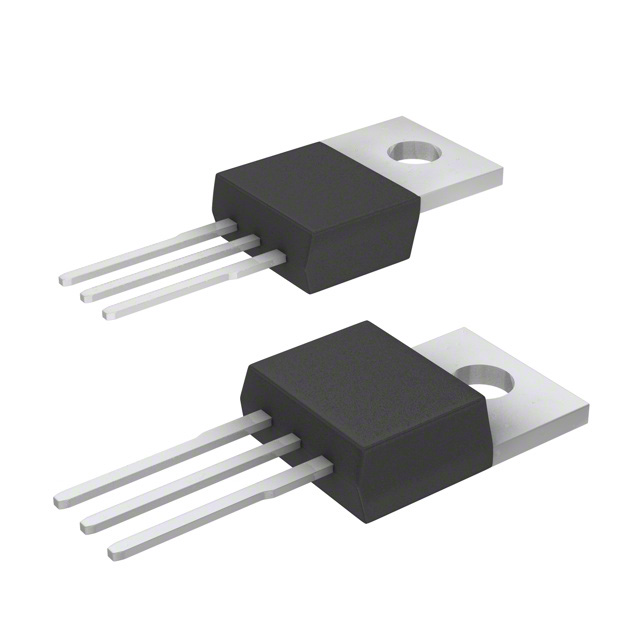

CMA30E1600PN

Active

IXYS

SCR 1.6KV 50A TO220ABFP

Search across all available documentation for this part.

Active

IXYS

SCR 1.6KV 50A TO220ABFP

Technical Specifications

Parameters and characteristics for this part

Specification	CMA30E1600PN

Current - Gate Trigger (Igt) (Max) [Max]	28 mA
Current - Hold (Ih) (Max) [Max]	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	260 A, 280 A
Current - Off State (Max) [Max]	10 µA
Current - On State (It (AV)) (Max) [Max]	30 A
Current - On State (It (RMS)) (Max) [Max]	50 A
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
SCR Type	Standard Recovery
Supplier Device Package	TO-220ABFP
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	1.6 kV
Voltage - On State (Vtm) (Max) [Max]	1.7 V

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - On State (Vtm) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	SCR Type	Mounting Type	Current - Off State (Max) [Max]	Package / Case	Current - On State (It (AV)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max)	Number of SCRs, Diodes	Structure
IXYS CMA30E1600PB	260 A 280 A	1.7 V	60 mA	Standard Recovery	Through Hole	10 µA	TO-220-3	30 A	28 mA	1.6 kV	TO-220-3	1.3 V	50 A
IXYS CMA30P1600FC	400 A 430 A		100 mA		Through Hole		i4-Pac™-5	30 A	55 mA	1.6 kV		1 V		150 °C	-40 °C	47 A	2 SCRs	Series Connection - All SCRs
IXYS CMA30E1600PN	260 A 280 A	1.7 V	60 mA	Standard Recovery	Through Hole	10 µA	TO-220-3 Full Pack	30 A	28 mA	1.6 kV	TO-220ABFP	1.3 V	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.6 kV 50 A Standard Recovery Through Hole TO-220ABFP
