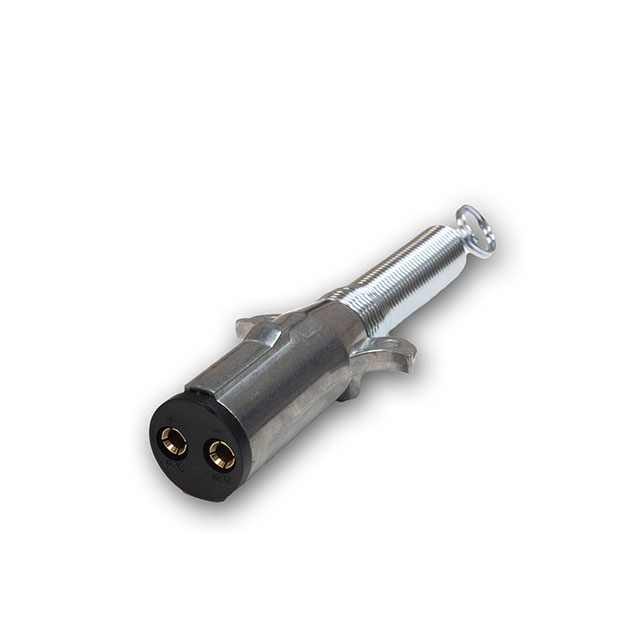

TC2H-P3-Z

Active

Switch Components

CONN PLUG FMALE 2POS SET SCREW

Search across all available documentation for this part.

Active

Switch Components

CONN PLUG FMALE 2POS SET SCREW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.76

General part information

2 Position Circular Connector Plug, Female Sockets Set Screw

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TC2H-P3-Z	TC2H Series

Applications	Automotive	Automotive
Cable Opening [custom]	1 in	1 in
Cable Opening [custom]	25.4 mm	25.4 mm
Color	Silver	Silver
Connector Type	Female Sockets, Plug	Receptacle, Male Pins, Female Sockets, Plug
Contact Material	Brass	Brass
Current Rating (Amps)	200 A	200 A
Fastening Type	Push-Pull	Push-Pull
Features	Cable Clamp, Strain Relief	Cap (Cover), Cable Clamp, Strain Relief
Insert Material	Polyacrylonitrile Butadiene Styrene (ABS)	Polyacrylonitrile Butadiene Styrene (ABS)
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Material	Zinc	Zinc
Shielding	Unshielded	Unshielded
Termination	Set Screw	Set Screw

CONN RCPT MALE 2POS SET SCREW

Part	Mounting Feature	Color	Primary Material	Connector Type	Number of Positions	Shielding	Applications	Fastening Type	Current Rating (Amps)	Orientation	Contact Material	Insert Material	Termination	Features	Shell Material	Mounting Type	Cable Opening [custom]	Cable Opening [custom]
Switch Components TC2H-SE2-Z	Flange	Silver	Metal	Male Pins, Receptacle	2	Unshielded	Automotive	Push-Pull	200 A	Keyed	Brass	Polyacrylonitrile Butadiene Styrene (ABS)	Set Screw	Cap (Cover)	Zinc
Switch Components TC2H-P3-Z		Silver	Metal	Female Sockets, Plug	2	Unshielded	Automotive	Push-Pull	200 A	Keyed	Brass	Polyacrylonitrile Butadiene Styrene (ABS)	Set Screw	Cable Clamp, Strain Relief	Zinc	Free Hanging (In-Line)	1 in	25.4 mm
