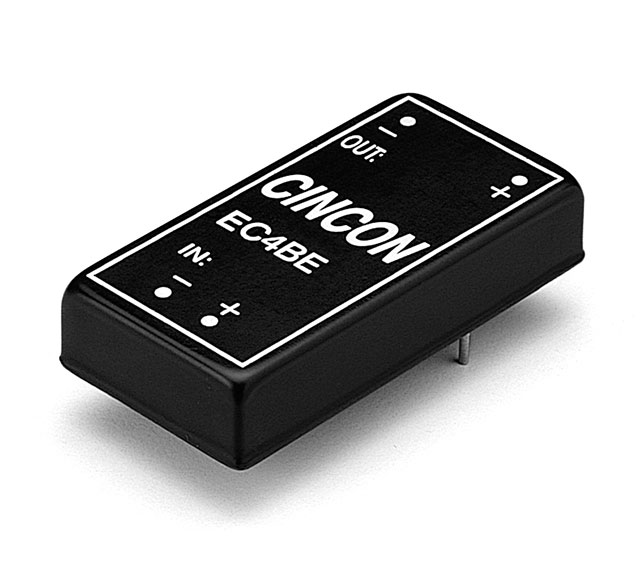

EC4BE11

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 5V 10W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Standard Number	Voltage - Input (Max) [Max]	Applications	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Voltage - Isolation	Package / Case	Mounting Type	Number of Outputs	Features	Voltage - Output 1	Power (Watts)	Type	Approval Agency	Voltage - Input (Min) [Min]	Efficiency	Package / Case	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC4BE24	60950-1	72 V	ITE (Commercial)	415 mA	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-40 °C	100 °C	-12 V	500 V	5-DIP Module	Through Hole	2	SCP	12 V	10 W	Isolated Module	CE cURus	36 V
Cincon Electronics Co. LTD EC4BE14	60950-1	36 V	ITE (Commercial)	415 mA	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-40 °C	100 °C	-12 V	500 V	5-DIP Module	Through Hole	2	SCP	12 V	10 W	Isolated Module	CE cURus	18 V	80 %
Cincon Electronics Co. LTD EC4BE13	60950-1	36 V	ITE (Commercial)		25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-40 °C	100 °C		500 V	5-DIP Module	Through Hole	1	SCP	15 V	10 W	Isolated Module	CE cURus	18 V	80 %	4 Lead	666 mA
Cincon Electronics Co. LTD EC4BE11	60950-1	36 V	ITE (Commercial)		25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	-40 °C	100 °C		500 V	5-DIP Module	Through Hole	1	SCP	5 V	10 W	Isolated Module	CE cURus	18 V	78 %	4 Lead	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 2A 18V - 36V Input
