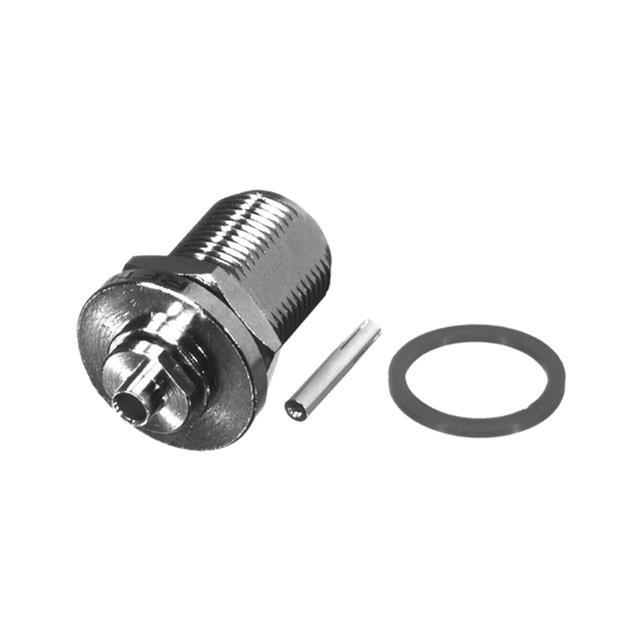

RFN-1022-SR1

Active

RF Industries

N FEMALE BH; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

N FEMALE BH; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1022-SR1

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 1671A, RG-405
Cable Group	0.085 in
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Housing Color	Voltage Rating	Center Contact Material	Shield Termination	Center Contact Plating	Connector Type	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Dielectric Material	Connector Style	Mounting Feature	Impedance	Contact Termination	Cable Group	Cable Group	Number of Ports
RF Industries RFN-1022-SR1	Silver	1000 VDC	Phosphor Bronze	Crimp	Gold	Female Socket Jack	Brass	Nickel	-65 ░C	165 °C	11 GHz	Polytetrafluoroethylene (PTFE)	N Type	Bulkhead - Front Side Nut	50 Ohms	Crimp	Belden 1671A RG-405	0.085 in	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp

Technical documentation and resources

No documents available
