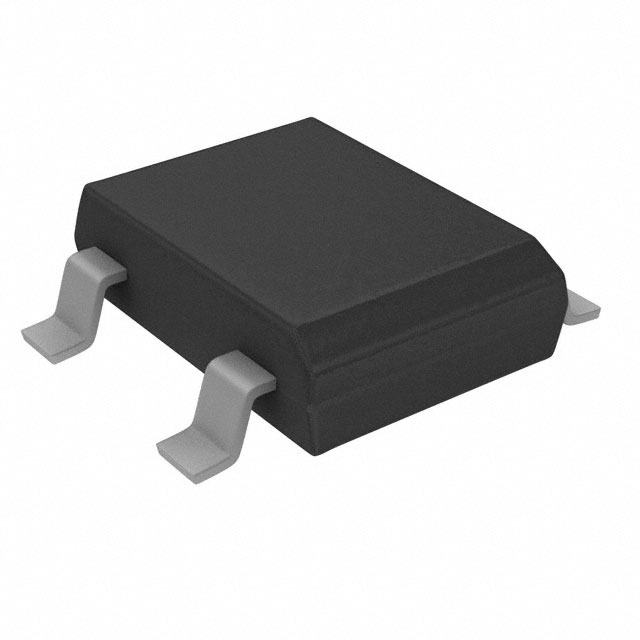

DB207S
ActiveSMC Diode Solutions
1000V, 2A, DB-S, BRIDGE RECTIFIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DB207S
ActiveSMC Diode Solutions
1000V, 2A, DB-S, BRIDGE RECTIFIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DB207S |
|---|---|
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | DB-S |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
