General part information

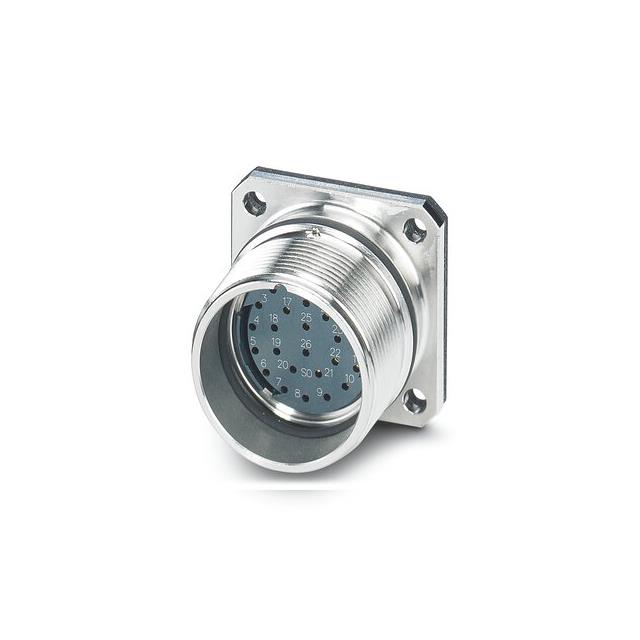

Heavy Duty Power Connectors HC-26S1N122300
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1590345 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 8 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Feature | Flange |
| Number of Positions | 26 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | N |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M27-26 |
| Shielding | Shielded |
Heavy Duty Power Connectors HC-26S1N122300
| Part | Contact Material | Insert Material | Current Rating (Amps) | Orientation | Primary Material | Color | Shell Material | Number of Positions | Connector Type | Shell Size - Insert | Contact Finish - Mating | Ingress Protection | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1590345 | Copper Zinc | Polyamide (PA66), Nylon 6/6 | 8 A | N | Metal | Silver | Gadolinium-Zinc | 26 | Receptacle, Female Sockets | M27-26 | Gold | IP67 - Dust Tight, Waterproof | Flange | -20 C | 125 °C | Shielded |
