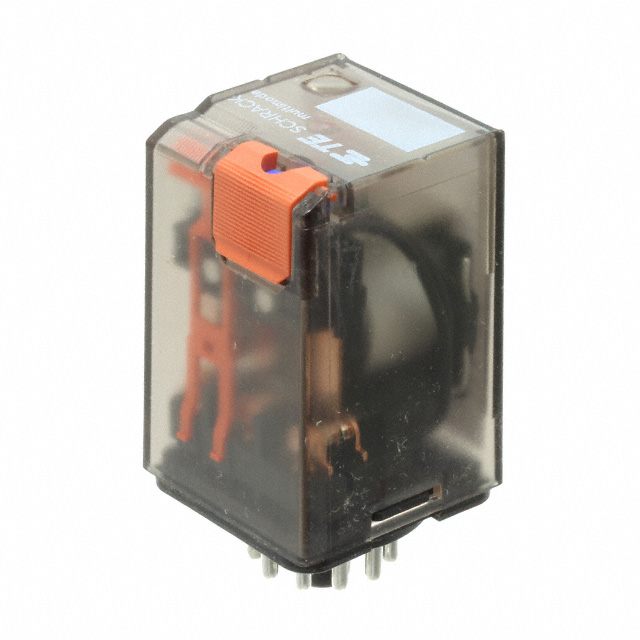

8-1415013-1
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-1415013-1
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1415013-1 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 250 VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Features | Test Button, Lighted Indicator |
| Load - Max Switching [Max] | 2500 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 187.5 VDC |
| Must Release Voltage | 25 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Plug In, 11 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MT3232 Series
General Purpose Relay 3PDT (3 Form C) 250VDC Coil Socketable
