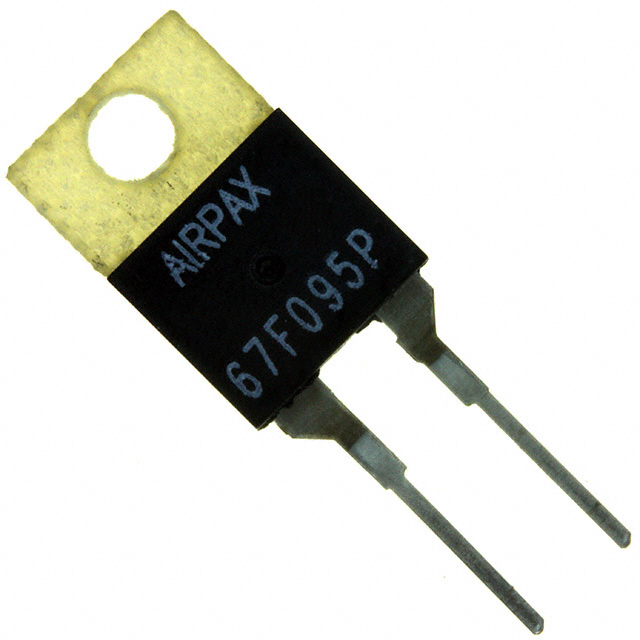

67F095P
ActiveSensata-Airpax
THERMOSTAT 95DEG C NO TO220-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
67F095P
ActiveSensata-Airpax
THERMOSTAT 95DEG C NO TO220-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 67F095P |
|---|---|
| Circuit | SPST-NO |
| Current Rating - DC | 0.5 A |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Reset Temperature | 60 °C |
| Reset Temperature | 140 °F |
| Switching Cycles | 20 K |
| Switching Temperature | 95 °C |
| Switching Temperature | 95 °C |
| Termination Style | PC Pins |
| Tolerance [Min] | 5 °C, 9 °F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.82 | |
| 1000 | $ 5.05 | |||
Description
General part information
67F095 Series
Thermostat 203°F (95°C) SPST-NO TO-220-2 PC Pins
