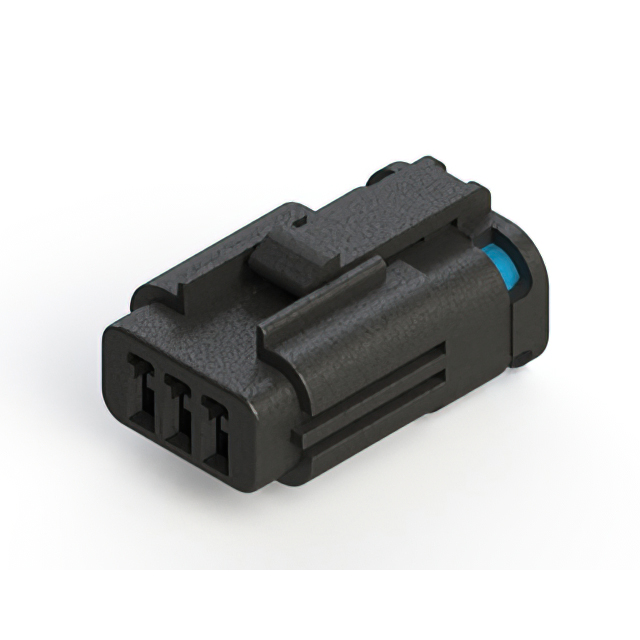

566-003-000-810

Active

EDAC Inc.

CONN RCPT HSG 3POS 2.00MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN RCPT HSG 3POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	566-003-000-810

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof (Mated, IP67)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Fastening Type	Pitch [x]	Pitch [x]	Contact Termination	Contact Type	Number of Rows	Note	Color	Insulation Material	Mounting Type
EDAC Inc. 566-003-000-711	Plug	-40 °C	105 ░C	Waterproof (Mated IP67)	Latch Lock	0.079 in	2 mm	Crimp	Male Pin	1	Contacts Not Included	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)
EDAC Inc. 566-003-000-810	Receptacle	-40 °C	105 ░C	Waterproof (Mated IP67)	Latch Lock	0.079 in	2 mm	Crimp	Female Socket	1	Contacts Not Included	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)
EDAC Inc. 566-003-000-811	Receptacle	-40 °C	105 ░C	Waterproof (Mated IP67)	Latch Lock	0.079 in	2 mm	Crimp	Female Socket	1	Contacts Not Included	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 2.95

General part information

3 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
