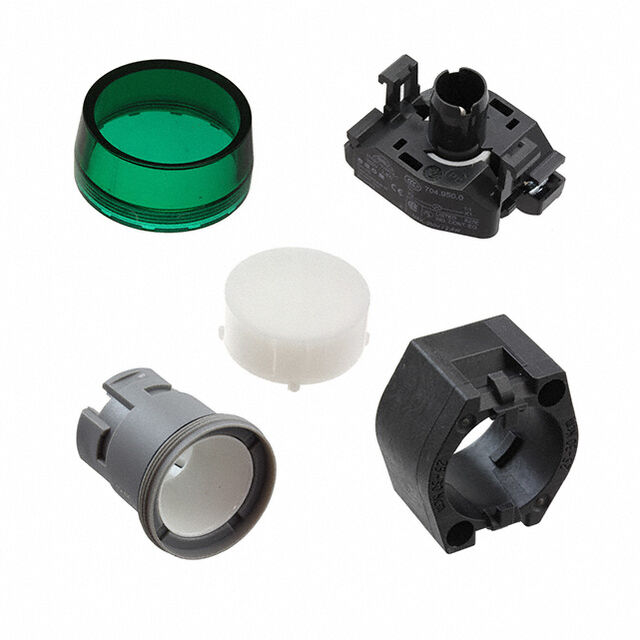

LAMP, 04 SERIES PUSHBUTTON SWITCHES
Search across all available documentation for this part.
LAMP, 04 SERIES PUSHBUTTON SWITCHES
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
LED Panel Indicator Clear Screw Terminal
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 704.000.5 | 704.000 Series |
|---|---|---|
| Ingress Protection | IP65 | IP65 |
| Lens Color | Green | Colorless, Red, Green, Blue, Yellow |
| Lens Size [diameter] | 29 mm | 29 mm |
| Lens Transparency | Clear | Clear |
| Panel Cutout Dimensions | 0.88 in | 0.88 in |
| Panel Cutout Dimensions | 22.3 mm | 22.3 mm |
| Panel Cutout Shape | Round | Round |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | LED | LED |
INDICATOR PANEL LED
| Part | Lens Transparency | Panel Cutout Shape | Ingress Protection | Type | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Size [diameter] | Termination Style | Lens Color |
|---|---|---|---|---|---|---|---|---|---|
EAO 704.000.7 | Clear | Round | IP65 | LED | 0.88 in | 22.3 mm | 29 mm | Screw Terminal | Colorless |
EAO 704.000.2 | Clear | Round | IP65 | LED | 0.88 in | 22.3 mm | 29 mm | Screw Terminal | Red |
EAO 704.000.5 | Clear | Round | IP65 | LED | 0.88 in | 22.3 mm | 29 mm | Screw Terminal | Green |
Clear | Round | IP65 | LED | 0.88 in | 22.3 mm | 29 mm | Screw Terminal | Blue | |
Clear | Round | IP65 | LED | 0.88 in | 22.3 mm | 29 mm | Screw Terminal | Yellow |
