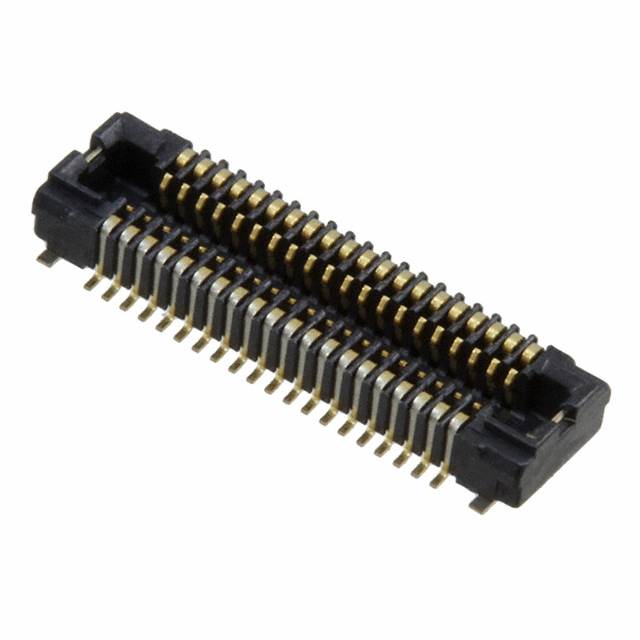

AXT340124

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT340124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm, 2 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Mounting Type	Number of Rows	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXT340124	1.5 mm 2 mm	Surface Mount	2	Outer Shroud Contacts Socket	Gold	0.016 in	0.4 mm	40	Solder Retention	0.057 in	1.45 mm
Panasonic Electric Works AXT340114	1.5 mm	Surface Mount	2	Outer Shroud Contacts Socket	Gold	0.016 in	0.4 mm	40	Board Guide Solder Retention	0.057 in	1.45 mm
