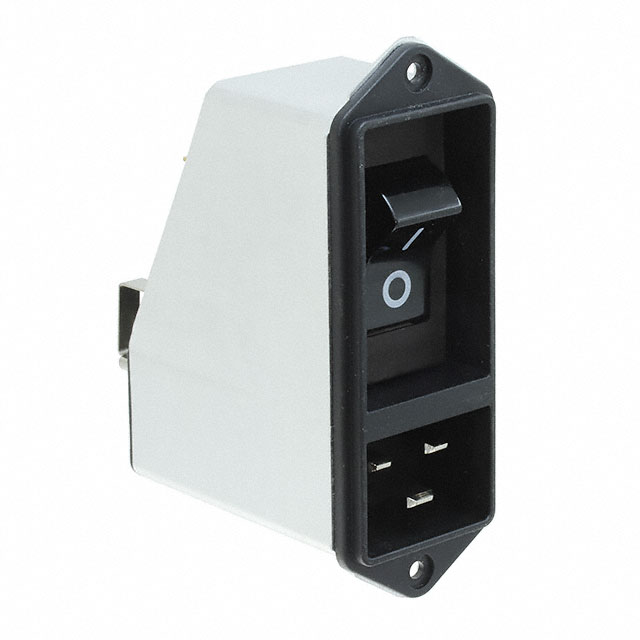

EF12.2105.1110.02

Active

SCHURTER Inc.

AC POWER ENTRY MODULES EF12 .ABDBL160C0 20A

Search across all available documentation for this part.

Active

SCHURTER Inc.

AC POWER ENTRY MODULES EF12 .ABDBL160C0 20A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EF12.2105.1110.02	EF12 Series

Accomodates a Fuse	False	False
Approval Agency	cURus, ENEC	cURus, ENEC
Connector Style	IEC 320-C20	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Circuit Breaker	16 A	15 - 16 A
Current Rating - Filter	-	15 A
Features	Shielded	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	33.9 mm	33.9 mm
Panel Cutout Dimensions [y]	81 mm	81 mm
Switch Features	Circuit Breaker, Switch On-Off	Circuit Breaker, Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

AC Power Entry Modules EF12 .ABDBL160C0 20A

Part	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Accomodates a Fuse	Material Flammability Rating	Ingress Protection	Connector Style	Voltage Rating - Appliance Inlet	Current Rating - Circuit Breaker	Termination	Termination	Termination	Switch Features	Current Rating - Appliance Inlet	Features	Filter Type	Connector Type	Current Rating - Filter
SCHURTER Inc. EF12.2105.1110.02	Flange, Panel Mount	81 mm	33.9 mm	cURus, ENEC		UL94 V-0	IP40	IEC 320-C20	250 VAC	16 A	0.25 in	6.3 mm	Quick Connect	Circuit Breaker, Switch On-Off	10 A	Shielded	Filtered (EMI, RFI) - Commercial	Receptacle, Male Blades - Module
SCHURTER Inc. EF12.0885.2110.01	Flange, Panel Mount	81 mm	33.9 mm	cURus, ENEC		UL94 V-0	IP40	IEC 320-C20	250 VAC	15 A	0.25 in	6.3 mm	Quick Connect	Circuit Breaker, Switch On-Off	10 A	Shielded	Filtered (EMI, RFI) - Commercial	Receptacle, Male Blades - Module	15 A
