Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PEN.0F.304.XLM | PEN.0F Series |
|---|---|---|
| Applications | Aerospace | Aerospace |
| Cable Opening [custom] | 0.354 in | 0.354 in |
| Cable Opening [custom] | 9 mm | 9 mm |
| Color | Gray | Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 6.5 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -15 °C | -15 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 304 | 302 - 305 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
PEN.0F Series

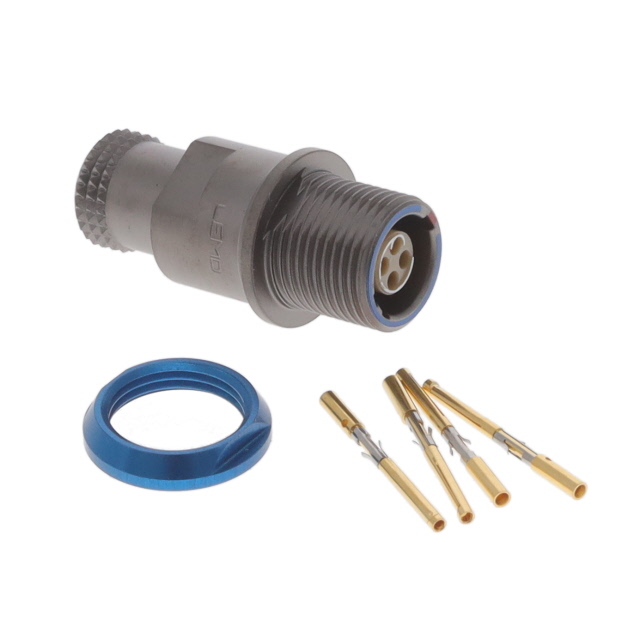

Standard Circular Connector 4P STR RCPT CRIMP NUT FIXING
| Part | Applications | Shell Size - Insert | Orientation | Shell Material | Shell Finish | Insert Material | Color | Current Rating (Amps) | Primary Material | Connector Type | Cable Opening [custom] | Cable Opening [custom] | Ingress Protection | Termination | Shielding | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Fastening Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PEN.0F.304.XLM | Aerospace | 304 | N | Aluminum Alloy | Nickel | Polyetheretherketone (PEEK) | Gray | 7 A | Metal | Receptacle, Female Sockets | 0.354 in | 9 mm | IP67 - Dust Tight, Waterproof | Crimp | Shielded | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | Bronze | UL94 V-0 | 200 °C | -15 °C | 4 | Push-Pull | Gold |
LEMO PEN.0F.305.XLM | Aerospace | 305 | N | Aluminum Alloy | Nickel | Polyetheretherketone (PEEK) | Gray | 6.5 A | Metal | Receptacle, Female Sockets | 0.354 in | 9 mm | IP67 - Dust Tight, Waterproof | Crimp | Shielded | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | Bronze | UL94 V-0 | 200 °C | -15 °C | Push-Pull | Gold | |
LEMO PEN.0F.303.XLM | Aerospace | 303 | N | Aluminum Alloy | Nickel | Polyetheretherketone (PEEK) | Gray | 8 A | Metal | Receptacle, Female Sockets | 0.354 in | 9 mm | IP67 - Dust Tight, Waterproof | Crimp | Shielded | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | Bronze | UL94 V-0 | 200 °C | -15 °C | Push-Pull | Gold | |
LEMO PEN.0F.302.XLM | Aerospace | 302 | N | Aluminum Alloy | Nickel | Polyetheretherketone (PEEK) | Gray | 10 A | Metal | Receptacle, Female Sockets | 0.354 in | 9 mm | IP67 - Dust Tight, Waterproof | Crimp | Shielded | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | Bronze | UL94 V-0 | 200 °C | -15 °C | 2 | Push-Pull | Gold |
