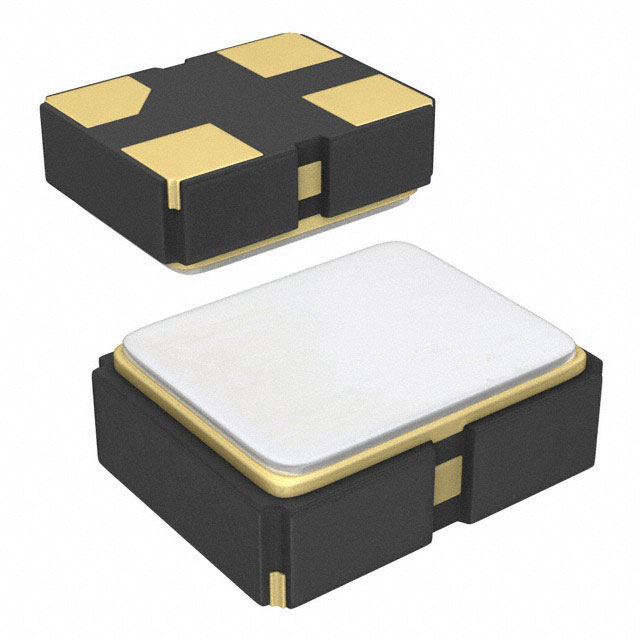

SG5032CCN 6.000000M-HJGA0

Active

EPSON

XTAL OSC XO 6.000000MHZ CMOS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SG5032CCN 6.000000M-HJGA0

Active

EPSON

XTAL OSC XO 6.000000MHZ CMOS SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SG5032CCN 6.000000M-HJGA0	SG5032CCN Series

Base Resonator	Crystal	Crystal
Current - Supply (Disable) (Max) [Max]	10 mA	10 mA
Current - Supply (Max) [Max]	20 mA	20 mA
Frequency	6 MHz	3.2768 - 48 MHz
Frequency Stability	50 ppm	50 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max] [z]	1.3 mm	1.3 mm
Height - Seated (Max) [Max] [z]	0.051 in	0.051 in
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	CMOS	CMOS
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	0.197 in	0.197 in
Size / Dimension [x]	5 mm	5 mm
Size / Dimension [y]	0.126 "	0.126 "
Size / Dimension [y]	3.2 mm	3.2 mm
Type	XO (Standard)	XO (Standard)

SG5032CCN Series

XTAL OSC XO 48.000000MHZ CMOS

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Supply (Max) [Max]	Type	Mounting Type	Current - Supply (Disable) (Max) [Max]	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Function	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency Stability	Base Resonator
EPSON SG5032CCN 48.000000M-HJGA3	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	48 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 8.000000M-HJGA0	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	8 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 25.000000M-HJGA0	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	25 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 6.000000M-HJGA0	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	6 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 4.000000M-HJGAB	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	4 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 40.680000M-HJGAB	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	40.68 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 8.000000M-HJGAB	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	8 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 20.000000M-HJGA0	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	20 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 16.000000M-HJGAB	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	16 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal
EPSON SG5032CCN 3.276800M-HJGA0	0.197 in	0.126 "	3.2 mm	5 mm	20 mA	XO (Standard)	Surface Mount	10 mA	CMOS	1.3 mm	0.051 in	Enable/Disable	3.2768 MHz	85 °C	-40 °C	4-SMD, No Lead	50 ppm	Crystal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.21
		10	$ 1.04
		50	$ 0.94
		100	$ 0.90
		500	$ 0.81
	Digi-Reel®	1	$ 1.21
		10	$ 1.04
		50	$ 0.94
		100	$ 0.90
		500	$ 0.81
	Tape & Reel (TR)	1000	$ 0.78
		2000	$ 0.74
		3000	$ 0.73
		5000	$ 0.70
		7000	$ 0.69
		10000	$ 0.67

Description

General part information

SG5032CCN Series

6 MHz XO (Standard) CMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
