52.2-AN-25

Active

J.W. Winco

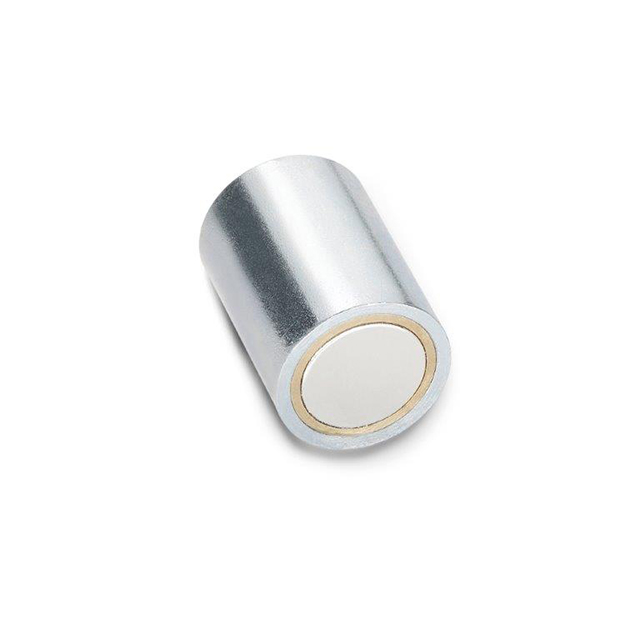

MAGNET 0.984"D X 1.378"THICK CYL

Search across all available documentation for this part.

Active

J.W. Winco

MAGNET 0.984"D X 1.378"THICK CYL

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature	Finish	Size [z]	Size [diameter]	Size [z]	Size [diameter]	Material	Material	Shape
J.W. Winco 52.2-AN-10	450 °C	Steel Zinc	0.787 in	0.394 in	20 mm	10 mm	AlNiCo	Alnico	Cylindrical
J.W. Winco 52.2-AN-8	450 °C	Steel Zinc	0.787 in	0.315 "	20 mm	8 mm	AlNiCo	Alnico	Cylindrical
J.W. Winco 52.2-AN-25	450 °C	Steel Zinc	1.378 in	0.984 in	35 mm	25 mm	AlNiCo	Alnico	Cylindrical
J.W. Winco 52.2-AN-13	450 °C	Steel Zinc	0.787 in	0.512 in	20 mm	13 mm	AlNiCo	Alnico	Cylindrical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.28

General part information

Magnet Alnico (AlNiCo) 0.984" Dia x 1.378" H (25.00mm x 35.00mm)
