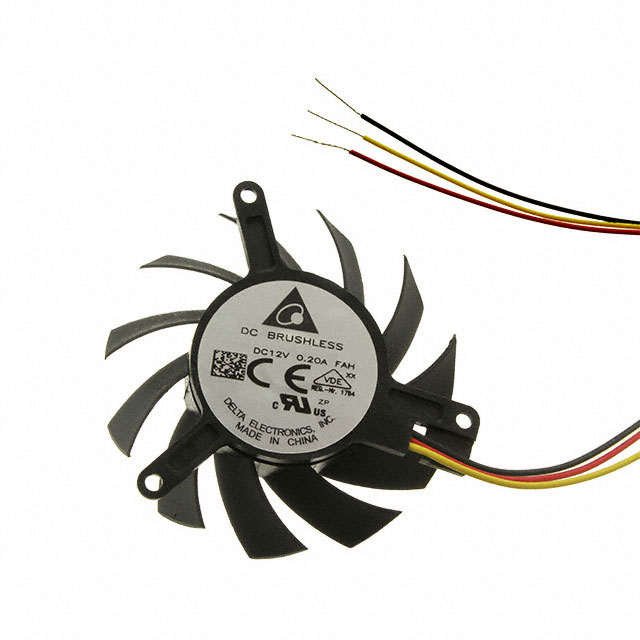

EFB0612HHAF99

Active

Delta Electronics

FAN AXL FRAMELSS 56X10.7MM 12VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

EFB0612HHAF99

Active

Delta Electronics

FAN AXL FRAMELSS 56X10.7MM 12VDC

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB0612HHAF99

Air Flow	0.42 m³/min
Air Flow	15 CFM
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Frameless, Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Noise	39 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.4 W
RPM	4800 RPM
Size / Dimension	Round
Size / Dimension [diameter]	56 mm
Static Pressure	32.1 Pa
Static Pressure	0.129 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	5 VDC
Weight	0.038 lb
Weight	17.24 g
Width [y]	10.7 mm

EFB0612 Series

Part	Current Rating (Amps)	Features	Noise	Width [y]	Weight	Weight	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Material - Frame	Termination	Voltage - Rated	RPM	Approval Agency	Bearing Type	Lifetime @ Temp.	Fan Type	Static Pressure	Static Pressure	Power (Watts)	Size / Dimension	Size / Dimension [diameter]
Delta Electronics EFB0612HHA-F00	0.18 A	Locked Rotor Protection Speed Sensor (Tach)	36.5 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	21.2 CFM	0.594 m³/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	3 Wire Leads	12 VDC	4800 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	42.1 Pa	0.169 in H2O	2.16 W
Delta Electronics EFB0612MA-R00		Locked Rotor Sensor	29 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	15.5 CFM	0.434 m³/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	3 Wire Leads	12 VDC	3600 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	23.4 Pa	0.094 in H2O
Delta Electronics EFB0612LA-R00	70 mA	Locked Rotor Sensor	24.5 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	13.4 CFM	0.375 mł/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	3 Wire Leads	12 VDC	3000 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	16.2 Pa	0.065 in H2O	840 mW
Delta Electronics EFB0612HHA	0.18 A		36.5 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	21.2 CFM	0.594 m³/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	2 Wire Leads	12 VDC	4800 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	42.1 Pa	0.169 in H2O	2.16 W
Delta Electronics EFB0612LA	70 mA		24.5 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	13.4 CFM	0.375 mł/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	2 Wire Leads	12 VDC	3000 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	16.2 Pa	0.065 in H2O	840 mW
Delta Electronics EFB0612MA			29 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	15.5 CFM	0.434 m³/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	2 Wire Leads	12 VDC	3600 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	23.4 Pa	0.094 in H2O
Delta Electronics EFB0612HHAF99	0.2 A	Locked Rotor Protection Speed Sensor (Tach)	39 dB(A)	10.7 mm	17.24 g	0.038 lb	5 VDC	13.2 VDC	15 CFM	0.42 m³/min			60 °C	60 °C	-10 °C	-10 °C	Plastic		3 Wire Leads	12 VDC	4800 RPM	CE cURus VDE	Ball	50000 Hrs	Frameless Tubeaxial	32.1 Pa	0.129 in H2O	2.4 W	Round	56 mm
Delta Electronics EFB0612HA-F00	120 mA	Locked Rotor Protection Speed Sensor (Tach)	33 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	18 CFM	0.504 m³/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	3 Wire Leads	12 VDC	4200 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	32.9 Pa	0.132 in H2O	1.44 W
Delta Electronics EFB0612MA-F00		Locked Rotor Protection Speed Sensor (Tach)	29 dB(A)	10 mm	28.12 g	0.062 lb	7 V	13.8 VDC	15.5 CFM	0.434 m³/min	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	Plastic	3 Wire Leads	12 VDC	3600 RPM	CE CSA UL VDE	Ball	70000 Hrs	Tubeaxial	23.4 Pa	0.094 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.38
		10	$ 10.64
		25	$ 9.65
		50	$ 8.91
		135	$ 7.79
		270	$ 7.30
		540	$ 6.80

Description

General part information

EFB0612 Series

Fan Tubeaxial, Frameless 12VDC Round - 56mm Dia Ball 15.0 CFM (0.420m³/min) 3 Wire Leads
