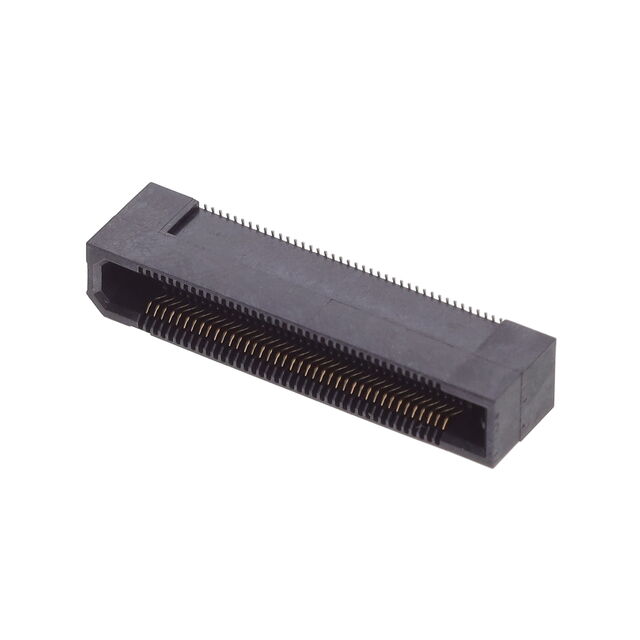

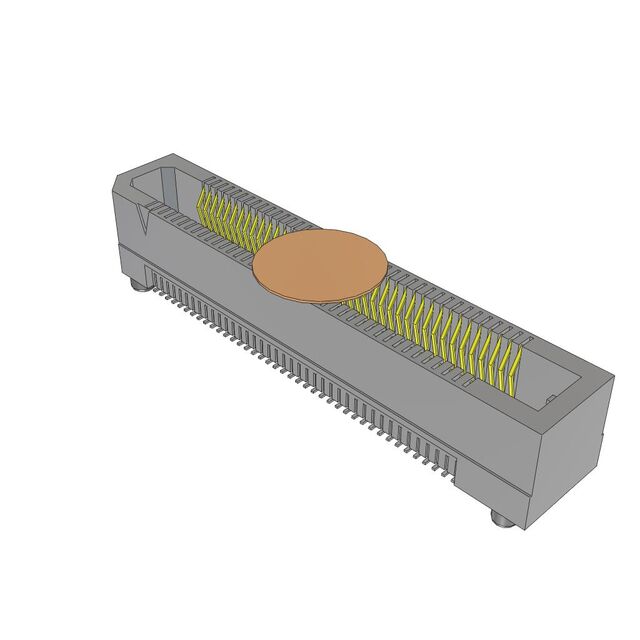

ERF5-040-07.0-L-DV-TR

Active

Samtec Inc.

CONN SOCKET 80POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-040-07.0-L-DV-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	6.9 mm
Height Above Board [z]	0.272 in
Mated Stacking Heights	11 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Rows	Contact Finish	Mated Stacking Heights	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Features	Height Above Board
Samtec Inc. ERF5-040-05.0-L-DV-WT-TR	4.9 mm	0.193 in	Surface Mount	2	Gold	7 mm 9 mm 10 mm	Socket Center Strip Contacts	10 Áin	0.25 Ám	0.5 mm	0.02 in	80	Board Guide Solder Retention
Samtec Inc. ERF5-040-05.0-S-DV-TR	4.9 mm	0.193 in	Surface Mount	2	Gold	7 mm 9 mm 10 mm	Socket Center Strip Contacts	30 Áin	0.76 Ám	0.5 mm	0.02 in	80	Board Guide
Samtec Inc. ERF5-040-07.0-L-DV	6.9 mm	0.272 in	Surface Mount	2	Gold	9 mm 11 mm 12 mm	Socket Center Strip Contacts	10 Áin	0.25 Ám	0.5 mm	0.02 in	80	Board Guide
Samtec Inc. ERF5-040-01-L-D-RA		0.187 in	Surface Mount Right Angle	2	Gold		Socket Center Strip Contacts	10 Áin	0.25 Ám	0.5 mm	0.02 in	80	Board Guide	4.75 mm
Samtec Inc. ERF5-040-07.0-L-DV-TR	6.9 mm	0.272 in	Surface Mount	2	Gold	9 mm 11 mm 12 mm	Socket Center Strip Contacts	10 Áin	0.25 Ám	0.5 mm	0.02 in	80	Board Guide
Samtec Inc. ERF5-040-01-S-D-RA-TR		0.187 in	Surface Mount Right Angle	2	Gold		Socket Center Strip Contacts	30 Áin	0.76 Ám	0.5 mm	0.02 in	80	Board Guide	4.75 mm
