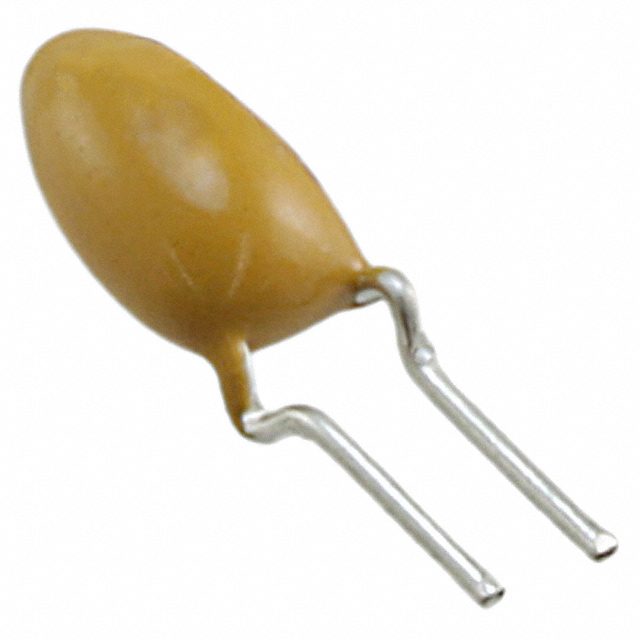

T351F336K010AT

Active

KEMET

CAPACITOR,33UF,10VDC,10-% TOL,10+% TOL

Search across all available documentation for this part.

Active

KEMET

CAPACITOR,33UF,10VDC,10-% TOL,10+% TOL

Technical Specifications

Parameters and characteristics for this part

Specification	T351F336K010AT

Capacitance	33 ÁF
ESR (Equivalent Series Resistance)	2.1 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.48 "
Height - Seated (Max) [Max] [z]	12.2 mm
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	F
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	10 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Tolerance	Features	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Manufacturer Size Code	Capacitance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type
KEMET T351F336K010AT	-55 °C	125 °C	10 V	10 %	General Purpose	2.1 Ohm	0.1 in	2.54 mm	F	33 ÁF	Radial	0.48 "	12.2 mm	Conformal Coated	6 mm	0.236 in	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

33 µF Conformal Coated Tantalum Capacitors 10 V Radial 2.1Ohm @ 100kHz

Technical documentation and resources
