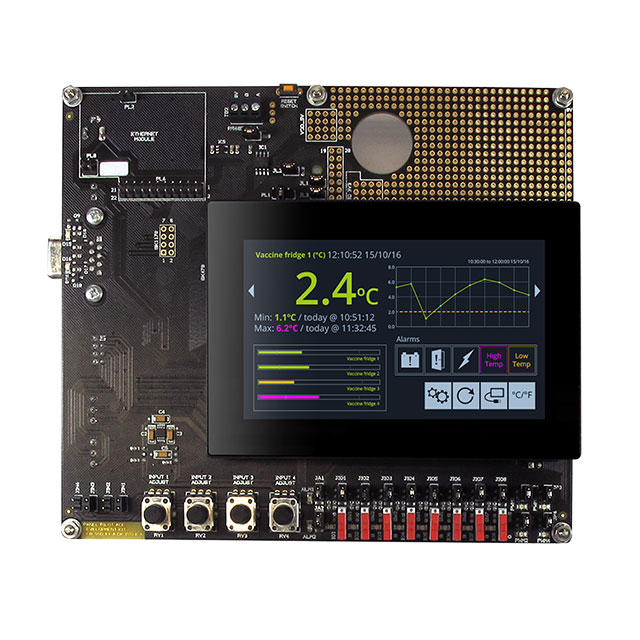

SGD 43-A DK+

Active

Lascar Electronics

DEV KIT FOR SGD 43-A

Search across all available documentation for this part.

Active

Lascar Electronics

DEV KIT FOR SGD 43-A

Technical Specifications

Parameters and characteristics commom to parts in this series

DEV KIT FOR SGD 43-A

Part	Function	Type	Utilized IC / Part	Embedded	Supplied Contents	Contents	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Max]	Measuring Range	Measuring Range [Min]	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Output Type	Termination Style	Display Type
Lascar Electronics SGD 43-A DK+	LCD Touch Screen	Display	SGD 43-A	Yes, Other	Board(s)	Board(s)
Lascar Electronics SGD 43-A		Ammeter, Volmeter					5 V	30 VDC	40 °C	0 °C	20 mA	40 VDC	4 mA	Current, Voltage	117 mm	78 mm	Solid State (2)	Screw Terminal	TFT - Color (Touch)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 516.49

General part information

SGD 43-A - LCD Touch Screen Display Evaluation Board
